Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

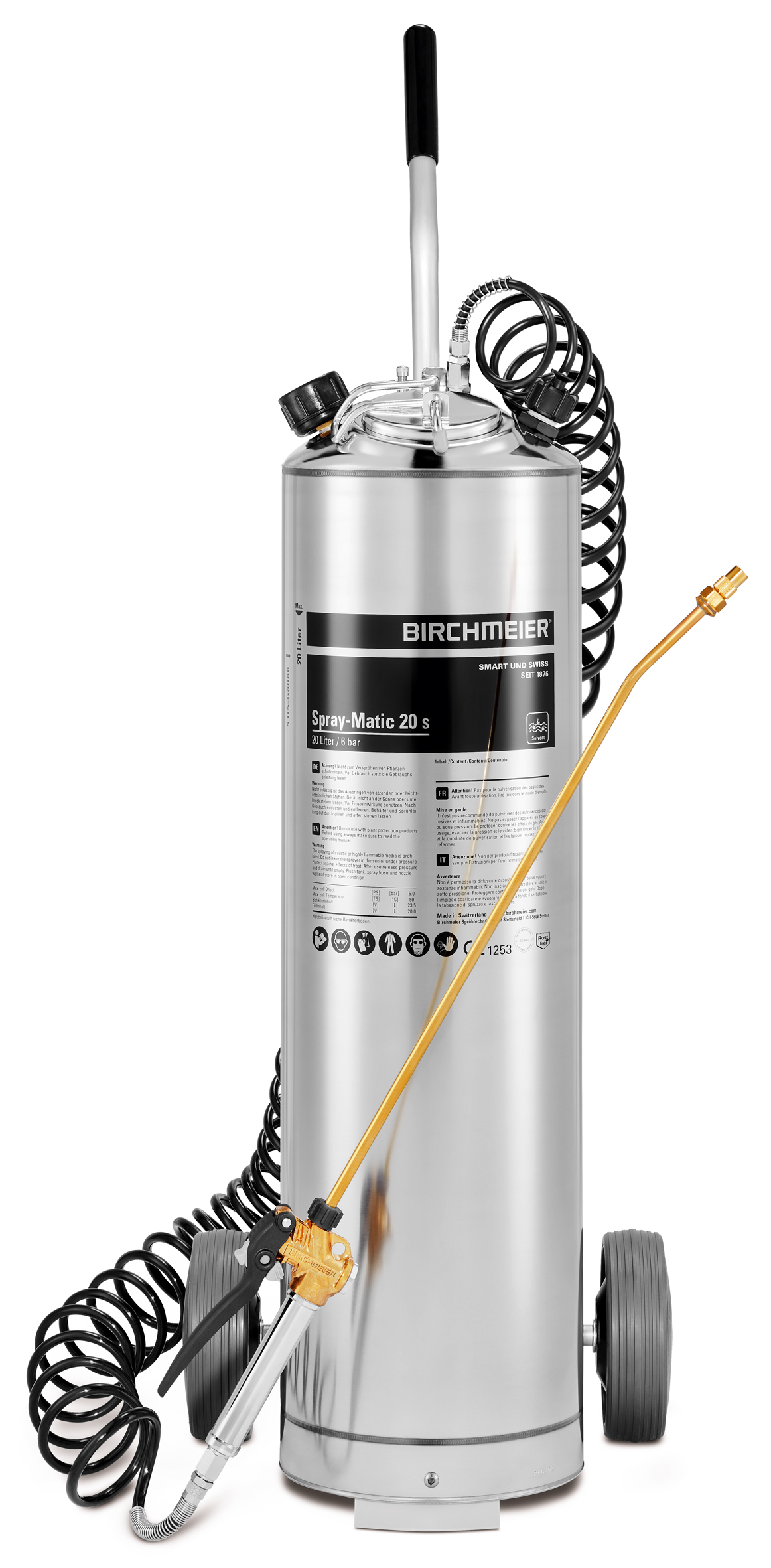

Spray-Matic 20 S without reducing valve

Article number: 11648202 / EAN: 7611034122243
Spray-Matic 20 S without reducing valve

Stainless steel compression sprayer without reducing valve

  • Tank made of stainless steel, filling capacity 20 litres
  • Operating pressure 6 bar
  • Chemical resistant Viton gaskets
  • Security valve
  • Separate, large filling opening
  • Hose coupling fixed on container head
  • Compressed air valve
  • Pressure gauge
  • Piston valve assembly with integrated fine filter
  • Robust piston valve assembly made of polypropylene and stainless steel
  • CE conform
Read more

Compare Add to wish list
Technical data
Chemical resistanceNot suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.For use with mineral oil based and vegetable solvents and oils.
ApplicationWater
Antirust
Impregnation
Mineraloil based solvent
Formwork release oil / Release agents
Form of applicationLiquid
Filling capacity (Volume, l)20
Max. working pressure (bar)6
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialBrass
Material Device/containerStainless steel
Material FittingsBrass vni, brass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)240
Width (mm)240
Height (mm)890
Weight (kg)7.5
Device typeCompression sprayer stainless steel
Special functionGaskets Viton
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Adjustable nozzle 1.3 mm G1/4” (Accessories)Adjustable nozzle 1.3 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Stainless steel hand-cart H1 (Accessories)Stainless steel hand-cart H1 (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Duro mist nozzle 0.8 mm, G1/4" (Accessories)Duro mist nozzle 0.8 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle50°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.0 mm, G1/4" (Accessories)Duro mist nozzle 1.0 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle60°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.3 mm, G1/4" (Accessories)Duro mist nozzle 1.3 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle75°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.5 mm, G1/4" (Accessories)Duro mist nozzle 1.5 mm, G1/4" (Accessories)Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Filler cap with reducing valve brass nickel-plated (Accessories)Filler cap with reducing valve brass nickel-plated (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Duro mist nozzle 1.65 mm, G1/4" (Accessories)Duro mist nozzle 1.65 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle90°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
