Fanjet nozzle G1/4"i, XR 8006 VS, Viton (grey) (Accessories)

Article number: 11612807-SB / EAN: 7611034100371
Fanjet nozzle G1/4
  • Spray pattern
  • Spray pattern

For wide areas with a defined spraying angle. Ideal for spray booms.

  • Pressure range 1 - 25 bar
  • Fitting thread G1/4“
  • Spray angle 80°
  • Stainless steel nozzle core
  • Integrated filter
  • Fine spray troplets
  • Ideal for treating wide areas

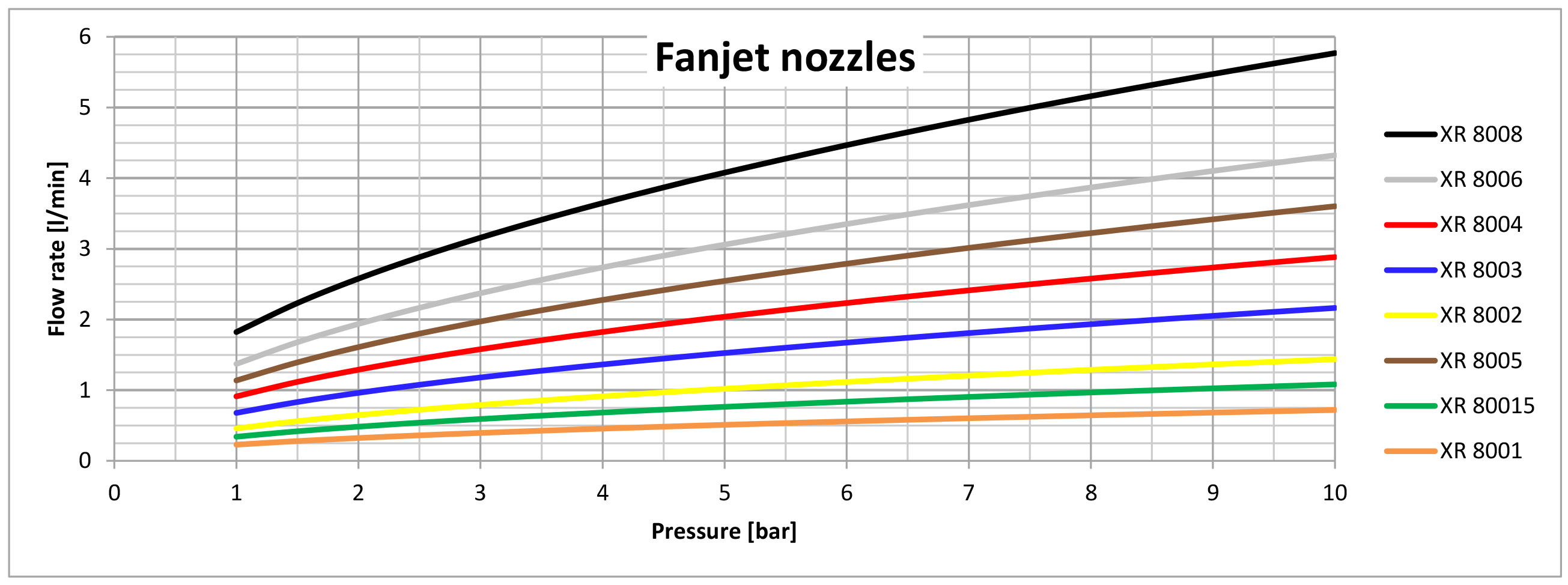

Nozzle flow rate
1.0 bar = 1.37 l/min.
1.5 bar = 1.67 l/min.
2.0 bar = 1.93 l/min.
3.0 bar = 2.37 l/min.
4.0 bar = 2.74 l/min.

Read more

Technical data
Flow rate gal/minpsi
Droplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
Spray patternFanjet nozzle (for surfaces, lawns, plates)
Spray angle80°
MaterialPlastic, stainless steel
Fitting threadG1/4"
