Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

Vario-Matic 1.25 PE

Article number: 11975001 / EAN: 7611034020211
Vario-Matic 1.25 PE

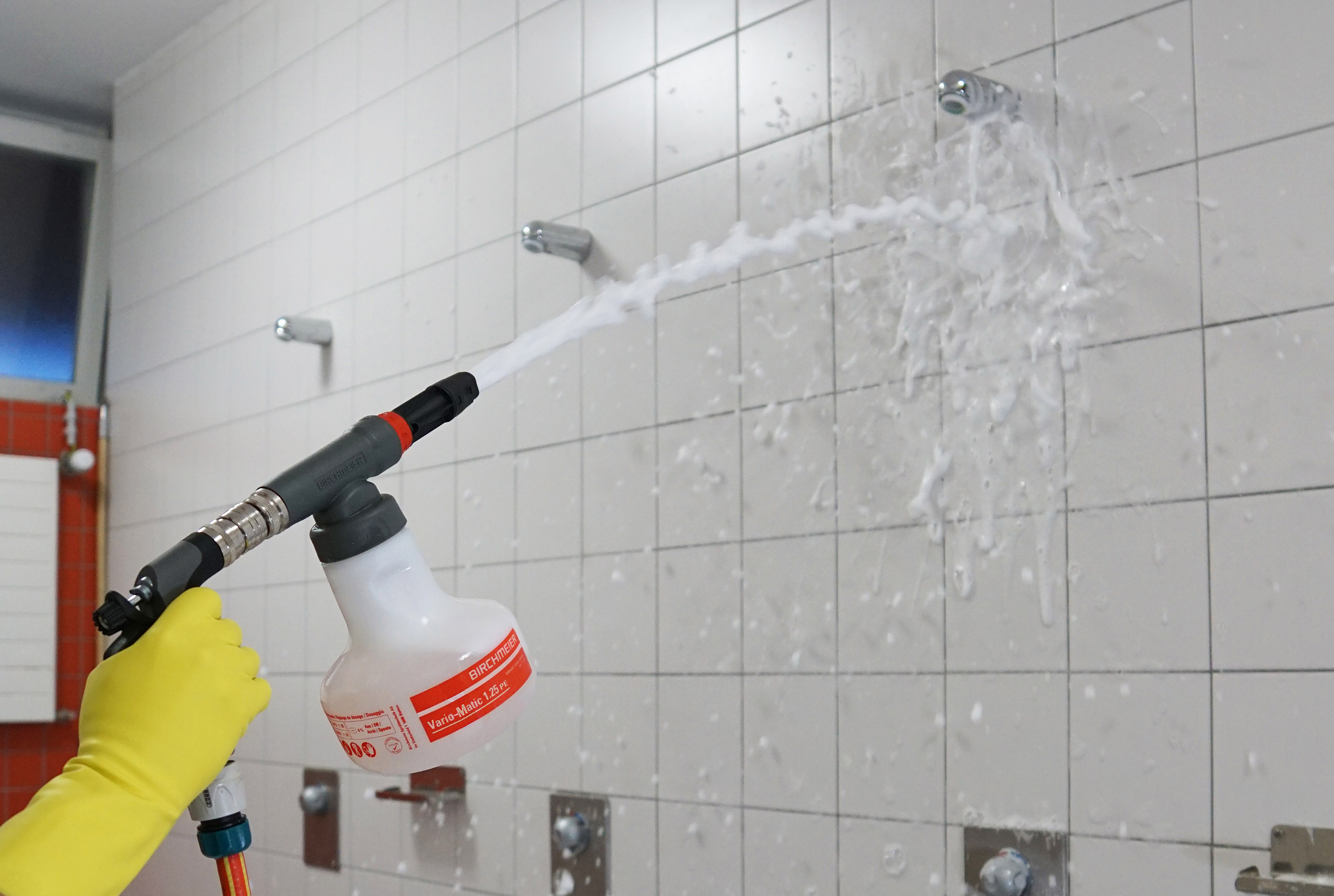

  • Vario-Matic 1.25 PE from Birchmeier for cleaning & disinfecting in sanitary facilities
  • Vario-Matic 1.25 PE from Birchmeier for cleaning & disinfecting in sanitary facilities
  • Vario-Matic 1.25 PE from Birchmeier for cleaning & disinfecting in sanitary facilities
  • Vario-Matic 1.25 PE from Birchmeier for cleaning & disinfecting in sanitary facilities
  • Vario-Matic 1.25 PE from Birchmeier for cleaning & disinfecting in sanitary facilities

Multifunctional foam gun with integrated mixing ratio dial

  • 4 different mixing ratios (1.5 %, 2.5 %, 5 %, 10 %)
  • High-performance foam nozzle
  • Robust 2 K trigger valve
  • 1.25 litre tank with mixing table
  • Free of brass parts, optimal for the Food Industry
  • Flow rate max. 12 l/min by 6 bar working pressure
  • Incl. deflector, spray nozzle, second quick connector
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with diluted acids, weak alkalis, hypochlochrites.For use with diluted alkalines and specific acids (for example acetic acid).Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationWater
Alkalis
Acids
Disinfection
Form of applicationFoam
Filling capacity (Volume, l)1.25
Max. working pressure (bar)6
Nozzle typeSpray nozzle
Fan-shaped foam nozzle
Spray patternFanjet nozzleFull cone nozzle
Nozzles materialPlastic
Material Device/containerPlastic
Material FittingsPlastic, brass vni
Fitting connectorsQuick coupling
Stress classVery heavy duty
Length (mm)430
Width (mm)150
Height (mm)220
Weight (kg)0.8
Device typeFoam gun
Mixer
Special function
