REC 15 AC1 (CAS with battery pack, with charger)

Article number: 12071701 / EAN: 7611034220161
REC 15 AC1
  • Akku-Rückensprühgerät REC 15 gewinnt Taspo Award
  • Akku-Rückensprühgerät REC 15 von Birchmeier zur Behandlung von Schnittblumen, Gärtnerei, Gartenbau
  • Akku-Rückensprühgerät REC 15 von Birchmeier zum Düngen von Pflanzen, Gärtnerei, Gartenbau
  • Akku-Rückensprühgerät REC 15 von Birchmeier zur Behandlung von Obstbäumen, Obstbau
  • Akku-Rückensprühgerät REC 15 von Birchmeier zur Behandlung von Obstbäumen, Obstbau
  • Akku-Rückensprühgerät REC 15 von Birchmeier zur Behandlung von Buchsbäumen, Galabau
  • Akku-Rückensprühgerät REC 15 von Birchmeier zur Rasenpflege, Galabau
  • Akku-Rückensprühgerät REC 15 ABZ von Birchmeier zur Rasenpflege, Galabau, Sprühschirm

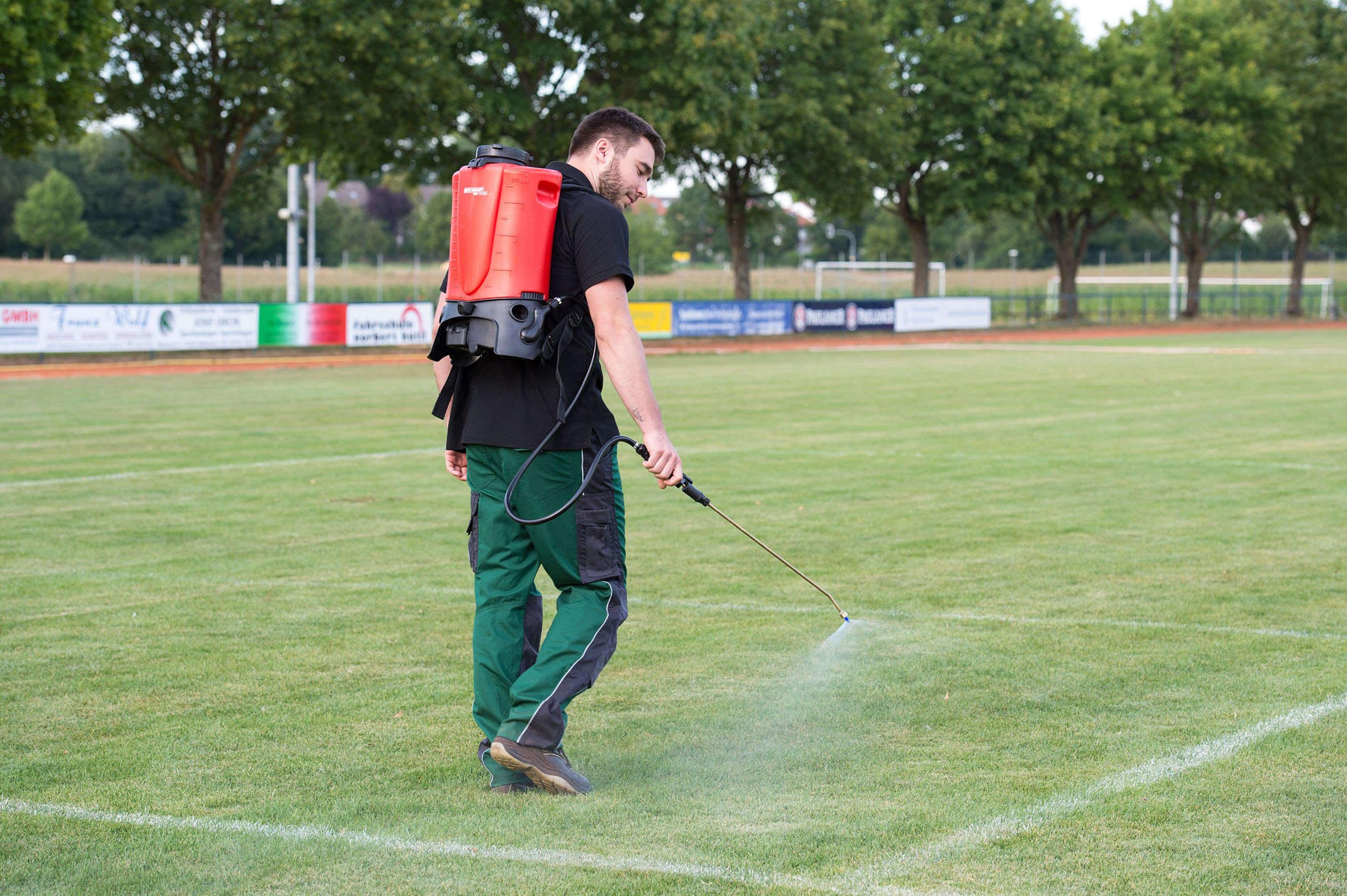

  • Akku-Rückensprühgerät REC 15 von Birchmeier zur Rasenpflege, Galabau, Winkeldüse
  • Akku-Rückensprühgerät REC 15 von Birchmeier zur Fassadenreinigung

Pressure controlled battery backpack sprayer with CAS system.

Performance characteristic

  • 7 - 87 psi
  • 0.06 - 0.42 gal / min
  • 18 V Li-Power / 4.0 Ah
  • Battery pack charging time < 80 min



Real work comfort

  • Consistent spray pattern
  • Drop size adjustable
  • Re-defined ergonomics
  • Hose outlet in front
  • Click belt system
  • Recessed grips
  • Quick-change system for battery pack



Electronically controlled

  • Intelligent pressure control
  • Operating pressure adjustable (7 - 87 psi)
  • Energy efficient
  • Protective setup for pump and battery pack



NEW with CAS: One battery, many solutions

  • 30 % more performance (4 Ah instead of 3 Ah)
  • CAS* - Unlimited combinations
  • Cross-manufacturer compatibility for over 300 devices
  • Different battery packs obtainable (up to 10 Ah)
  • Charge level is displayed by LED lights

* CAS (Cordless Alliance System is a cross-manufacturer battery pack system of leading power tool brands)

 «Accu-Power» Line

www.cordless-alliance-system.com

Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)15
Max. working pressure (bar)6
Nozzle typeAdjustable nozzle 1.7 mm
Spray patternAdjustable nozzle
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsPlastic / brass, brass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)240
Width (mm)340
Height (mm)570
Weight (kg)5.2
Device typeBackpack sprayer
Battery sprayer
Special functionBattery unit 18 VElectronic pressure regulation
Nozzles data
Adjustable nozzle 1.7 mm G1/4” (Accessories)Adjustable nozzle 1.7 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Trigger brass LB, G1/2" Viton, 10 bar (Accessories)Trigger brass LB, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Trigger brass LB, G1/2", Viton, 10 bar Trigger brass LB, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Adjustable nozzle 1.3 mm G1/4” (Accessories)Adjustable nozzle 1.3 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.3 mm, G1/4“ brass nickelAdjustable nozzle 1.3 mm, G1/4“ brass nickelTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 0.8 mm, G1/4" (Accessories)Duro mist nozzle 0.8 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle50°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.0 mm, G1/4" (Accessories)Duro mist nozzle 1.0 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle60°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.3 mm, G1/4" (Accessories)Duro mist nozzle 1.3 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle75°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.5 mm, G1/4" (Accessories)Duro mist nozzle 1.5 mm, G1/4" (Accessories)Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.65 mm, G1/4" (Accessories)Duro mist nozzle 1.65 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle90°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Herbicide Floodjet nozzle 1.6 mm, blue  (Accessories)Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiTo the nozzle
Fanjet nozzle G1/4"i, XR 8001 VS, Viton (orange) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 80015 VS, Viton (green) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8002 VS, Viton (yellow) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8003 VS, Viton (blue) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8004 VS, Viton (red) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Biofilter for the use of home-made spray mixtures (Accessories)Biofilter for the use of home-made spray mixtures (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Fanjet nozzle G1/4"i, XR 8005 VS, Viton (brown) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8006 VS, Viton (grey) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Anti-drift 95% fanjet nozzle, G1/4"iAnti-drift 95% fanjet nozzle, G1/4Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Vario GunVario GunTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range58 – 145 psiTo the nozzle
Fanjet nozzle G1/4"i, XR 8008 VS, Viton (white) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Vario Gun (Accessories)Vario Gun (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range58 – 145 psiFlow rate gal/minpsiTo the nozzle
Anti-drift fanjet nozzle G1/4"i, AIXR 110015 VP (green) (Accessories)Anti-drift fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 145 psiSpray angle110°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Anti-drift fanjet nozzle G1/4"i, AIXR 11002 VP (yellow) (Accessories) Anti-drift fanjet nozzle G1/4Technical parametersSpray patternPressure range15 – 145 psiSpray angle110°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Anti-drift fanjet nozzle G1/4"i, AIXR 11004 VP (red) (Accessories)Anti-drift fanjet nozzle G1/4Technical parametersSpray patternPressure range15 – 145 psiSpray angle110°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Instructions for useInstructions for use
Safety regulationsSafety regulations
Battery packBattery pack
