Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

_Foam Cleaner 20
(not available anymore)

Article number: 11672005 / EAN: 7611034122359Not available anymore.

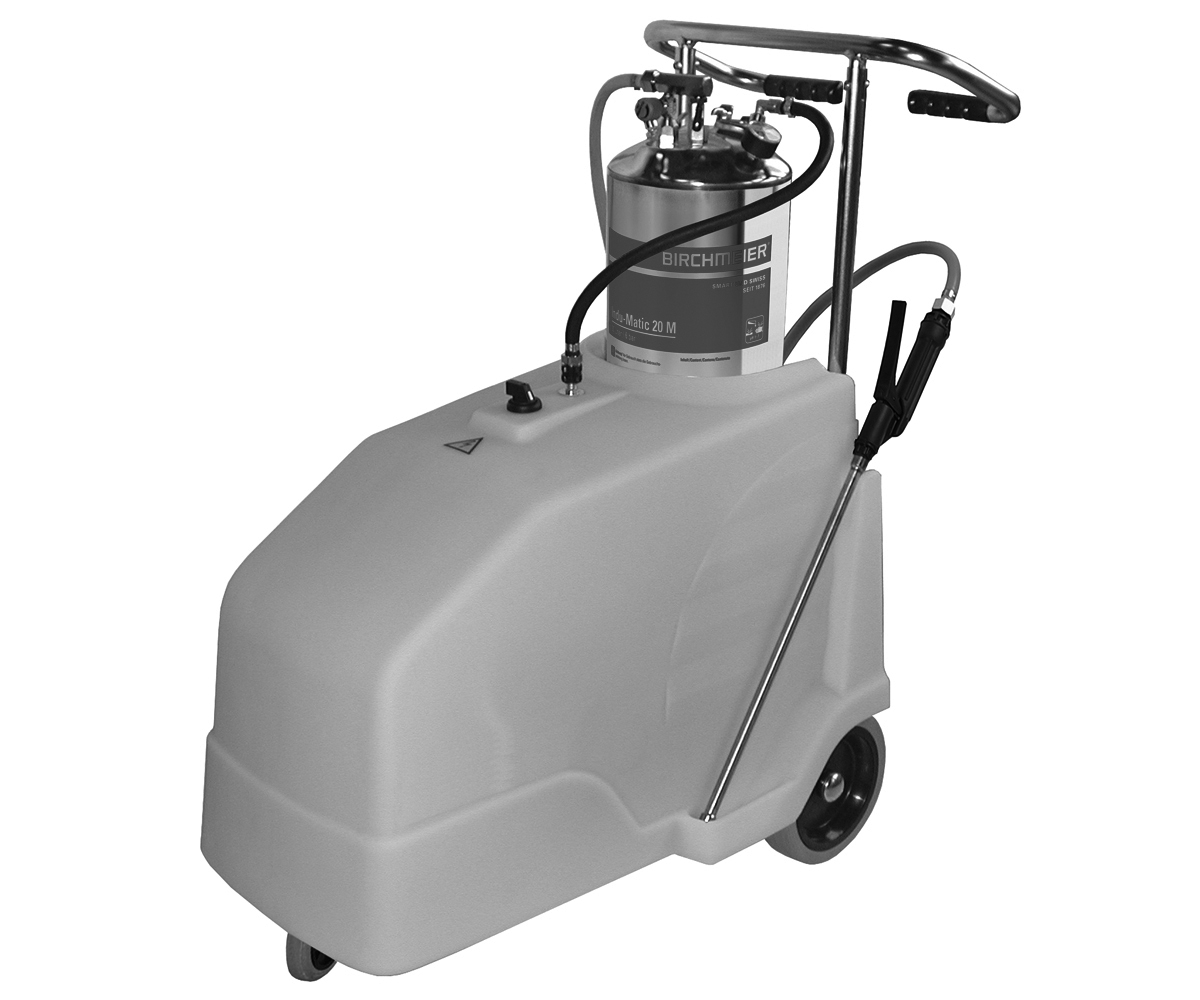

Foam Cleaner 20

Mobile foam cleaner made of stainless steel - The integrated, electrical compressor makes this equipment independent from compressed air resources

  • Tank made of stainless steel, volume 20 litres
  • Large filling opening with snap closing
  • Robust mixing unit to adjust the foam quality (from wet to dry)
  • Compressed air valve connection with quick coupling
  • Robust trigger valve assembly made of polypropylene and stainless steel with integrated fine filter
  • Handy, stainless steel lance 45 cm
  • Hoses 4, 6 and 8 m for large deployable radius
  • Changeable from foaming to spraying
  • Chemical resistant Viton gaskets
  • Safety valve – useful for quick deaeration
  • Pressure gauge
  • CE conform
  • Fixed on a hand cart with protection hood for easy manoeuvring (electricity cable 8 m)
Read more

Technical data
Chemical resistanceNot suitable for acid-based herbicides (for example acetic acid), peroxides, acids, alkalines and solvents.For use with diluted acids, weak alkalis, hypochlochrites.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationWater
Acids
Disinfection
Form of applicationFoam
Filling capacity (Volume, l)24
Max. working pressure (bar)6
Nozzle typeFanjet nozzle TP 6540-SS
Spray patternFanjet nozzle
Nozzles materialStainless steel
Material Device/containerStainless steel
Material FittingsPlastic, stainless steel
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)850
Width (mm)485
Height (mm)980
Device typeCompression foamer stainless steel with compressor
Special functionGaskets Viton
Nozzles data
Fanjet nozzle TP 6540-SSFanjet nozzle TP 6540-SSTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range0 – 0 psiFlow rate gal/minpsiTo the nozzle
Spray tube 1 m straight, stainless steel G1/4“i-G3/8“e (Accessories)Spray tube 1 m straight, stainless steel G1/4“i-G3/8“e (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
