Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

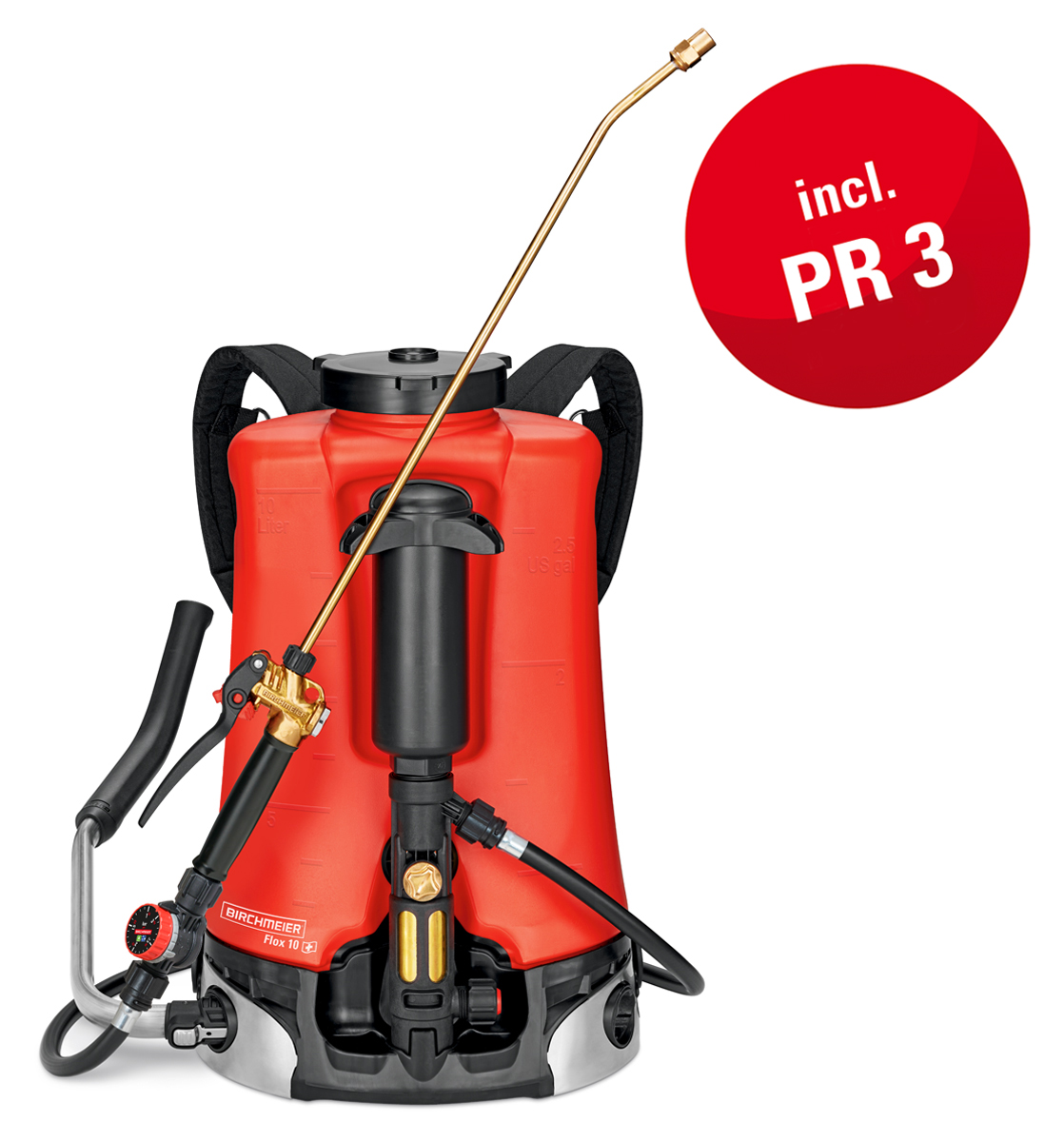

Flox 10 AD1 with PR 3
(Duro mist nozzle 1.5 mm / NBR)

Article number: 12099001 / EAN: 7611034011707Not available anymore.
Flox 10 AD1
  • Rückensprühgerät mit Druckregelventil
  • Rückensprühgerät mit Druckregelventil
  • Rückensprühgerät mit Druckregelventil

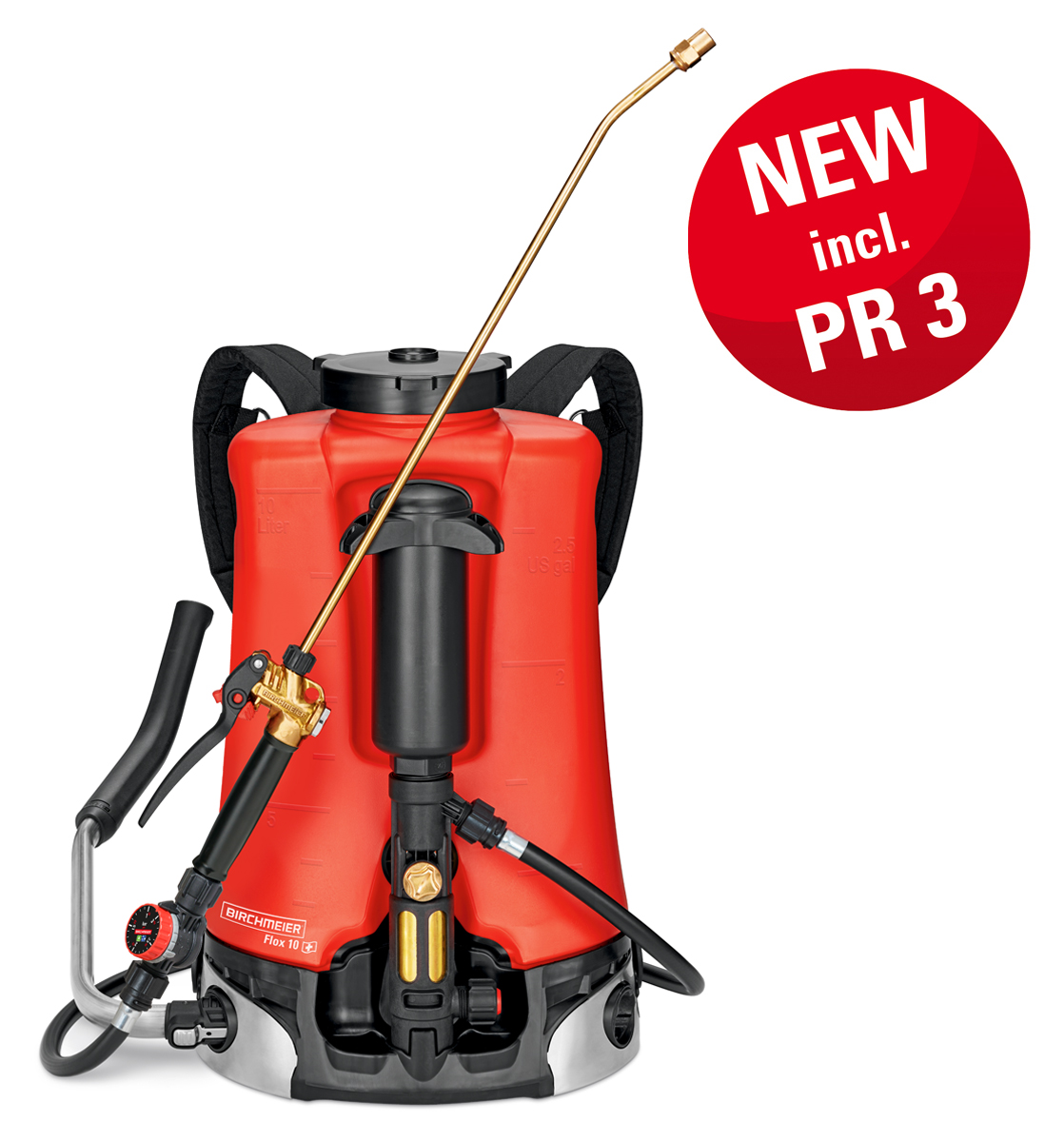

New with adjustable pressure control valve PR 3 E1

Adjustable pressure control valve PR 3 E1 (1-3 bar)

  • Constant pressure means
  • Less pumping
  • Effortless work
  • Less spray liquid
  • Environmental benefits



Ergonomics

  • Ergonomically shaped tank
  • Padded S-shaped carrying belts with click system
  • New pump lever system (see pump lever)
  • Hip and chest belt (optional)



Pump lever

  • Left or right handed operation
  • Adjustable length handle
  • Working and parking position
  • Stainless steel
  • Anatomically shaped and comfortable handle



Trigger valve

  • Locking and blocking function
  • Robust brass body
  • Ergonomically shaped lever
  • Integrated fine filter
  • Retightening gland packing



Additional improvements

  • 60 cm brass spray tube
  • Fine filter inside the shaped suction bend
  • Pump fixation / tank lead through (central brass bolt)
  • Rotatable pump for left or right handed operation
  • Spray wand carrier for spray tube and Vario Gun
  • Stainless steel reinforced frame



Reliable since more than 100 years

  • Robust brass pump, mounted externally
  • 6 bar maximum pressure
  • Duro mist nozzle 1.5 mm
  • Integrated grease piston
  • Adjustable rubber piston ring
  • Simple to maintain non-return valve
  • Large filling opening with filter
  • Long life lasting and service friendly
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)10
Max. working pressure (bar)6
Nozzle typeDuro mist nozzle 1.5 mm
Spray patternHollow cone nozzle (for smaller shrubs and plants)
Nozzles materialBrass, stainless steel
Material Device/containerPlastic
Material FittingsPlastic / brass, brass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)237
Width (mm)438
Height (mm)540
Weight (kg)4.6
Device typeBackpack sprayer
Special functionGaskets NBRAdjustable pressure control valve
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Duro mist nozzle 1.5 mm, G1/4"Duro mist nozzle 1.5 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 0.8 mm, G1/4" (Accessories)Duro mist nozzle 0.8 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle50°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.0 mm, G1/4" (Accessories)Duro mist nozzle 1.0 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle60°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.3 mm, G1/4" (Accessories)Duro mist nozzle 1.3 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle75°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.65 mm, G1/4" (Accessories)Duro mist nozzle 1.65 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle90°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Anti-drift 95% fanjet nozzle, G1/4"iAnti-drift 95% fanjet nozzle, G1/4Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.3 mm, G1/4“ brass nickelAdjustable nozzle 1.3 mm, G1/4“ brass nickelTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiTo the nozzle
Vario Gun (Accessories)Vario Gun (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range58 – 145 psiFlow rate gal/minpsiTo the nozzle
Fanjet nozzle G1/4"i, XR 8001 VS, Viton (orange) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 80015 VS, Viton (green) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8002 VS, Viton (yellow) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8003 VS, Viton (blue) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8004 VS, Viton (red) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8005 VS, Viton (brown) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8006 VS, Viton (grey) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8008 VS, Viton (white) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.7 mm, G1/4"Adjustable nozzle 1.7 mm, G1/4Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.3 mm G1/4” (Accessories)Adjustable nozzle 1.3 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
AccessoriesSpare partsVideo / LeafletInstructionsReviews
DownloadsAccessories and spare parts page 26Accessories and spare parts page 27
Videos
DownloadsLeaflet
HandlingFirst AssemblyFillingTo empty
Maintenance & careTo empty and rinse out unitCleaning nozzle and trigger Storage and greaseDisassembly backpack sprayer Change carrying beltsAssembly backpack sprayer
ModificationChange carrying beltsChange pumpChange shaft / bearing bush
ManualFlox 10 / Iris 15 AT1, AT3, PT1 / AD1, AD3, PD1
Safety regulationsSafety regulations
