Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

Spray-Matic 2 S, with PR 3

Article number: 11989501 / EAN: 7611034012148

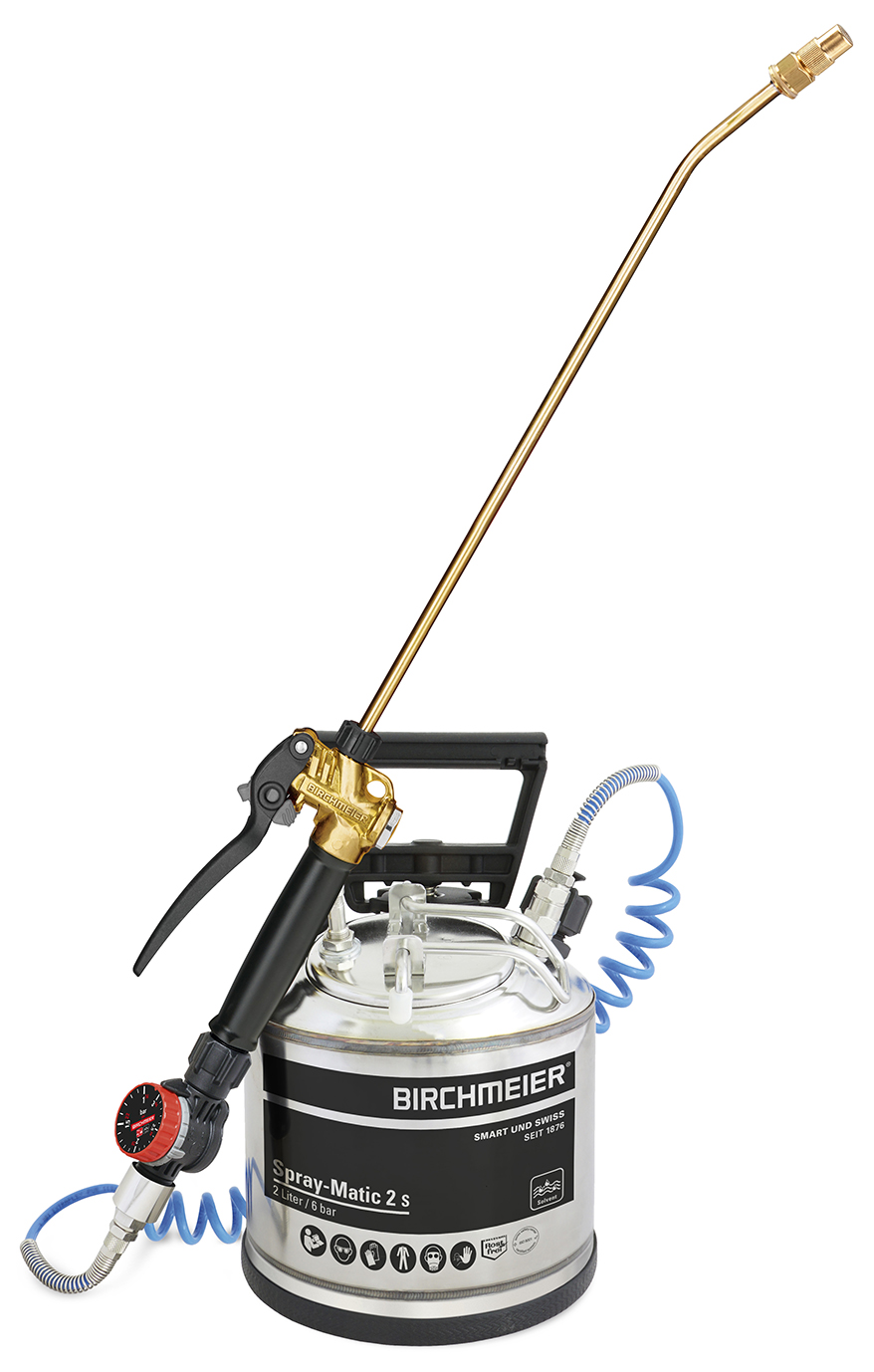

Spray-Matic 2 S

The professional stainless steel compression sprayer for pest control applications

  • Adjustable pressure control valve PR 3 P1 (1-3 bar)
  • Stainless steel pressure tank with rim protector
  • Fill capacity 2 litres (tank volume 3 litres)
  • Chemical resistant FPM (Viton) gaskets
  • 6 bar operating pressure
  • Separate, large filling opening
  • Spiral hose allows a reach of 3 meters
  • Adjustable brass nozzle
  • Safety and relief valve
  • Compressed air valve
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.For use with mineral oil based and vegetable solvents and oils.
ApplicationMineraloil based solvent
Form of applicationLiquid
Filling capacity (Volume, l)2
Max. working pressure (bar)6
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialBrass
Material Device/containerStainless steel
Material FittingsPlastic / brass, brass
Fitting connectorsscrew fitting
Stress classHeavy duty
Length (mm)185
Width (mm)185
Height (mm)265
Weight (kg)2.8
Device typeCompression sprayer stainless steel
Special functionAdjustable pressure control valve
Nozzles data
Adjustable nozzle 1.3 mm G1/4” (Accessories)Adjustable nozzle 1.3 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Pressure control valve PR 3 P1, G1/2" (14 - 44 psi) Pressure control valve PR 3 P1, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Pressure control valve PR 3, G1/2" (14 - 44 psi) (Accessories)Pressure control valve PR 3, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Pressure control valve PR 3 P1, G1/2" (14 - 44 psi) Pressure control valve PR 3 P1, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
