Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

_Senior 20

Article number: 11347004 / EAN: 7611034111261

Replaced by
Flox 10 / Iris 15, New Generation

Senior
  • Application Senior
  • Application Senior
  • Application Senior
  • Application Senior
  • Application Senior

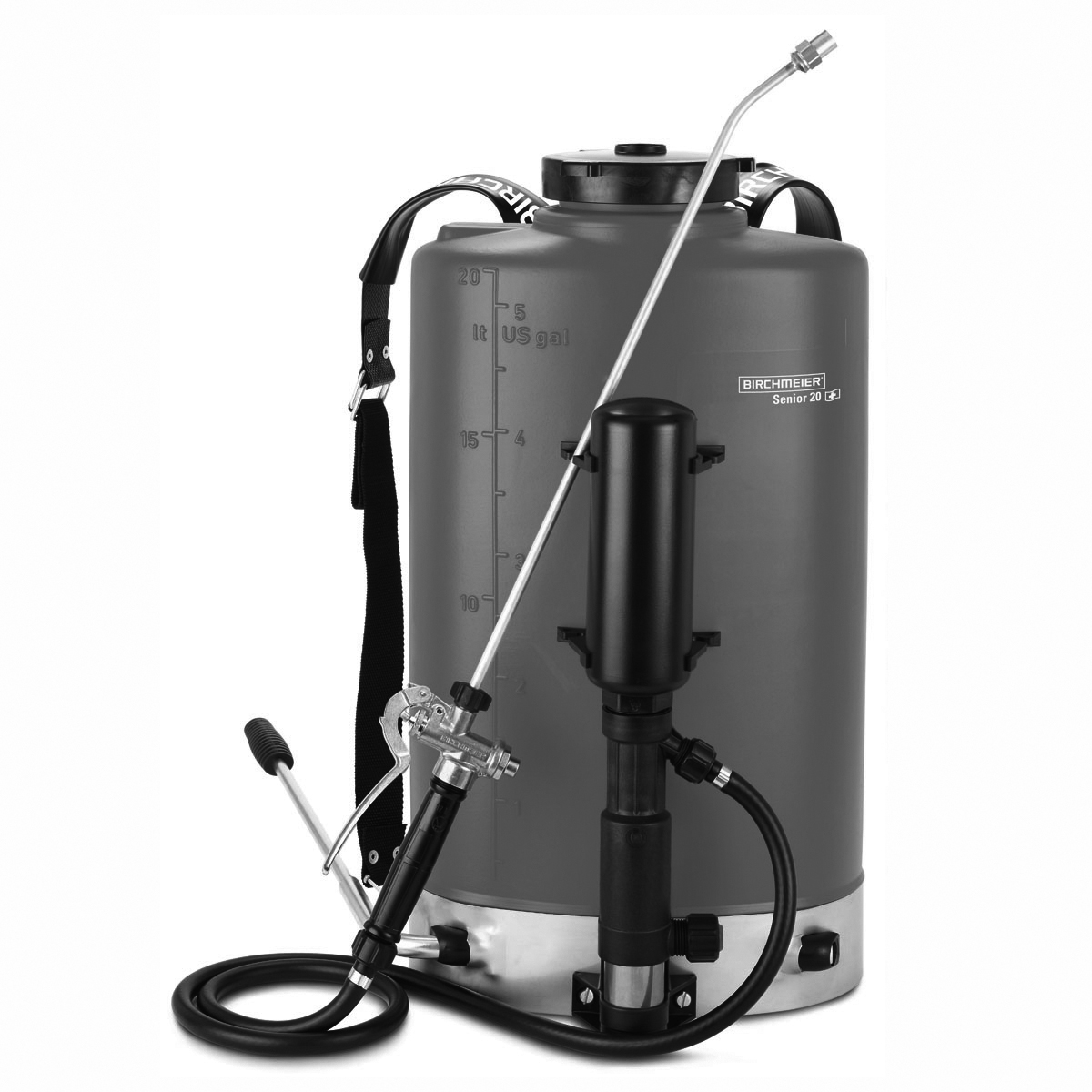

The ideal backpack sprayer for large scale applications with uncompromising quality for professional users.

  • Externally mounted 6 bar pump, easily accessible
  • Impact resistant 20 ltr. plastic tank, UV stabilised
  • Comfortable, individually adjustable carrying belt
  • Large filling opening with filter
  • Screw fastened pump lever for save working
  • Robust stainless steel frame
  • Brass trigger with integrated fine filter
  • 50 cm curved brass spray lance, with brass adjustable nozzle 1.3 mm
  • Comprehensive spare part and accessories program
  • BBA-version with manometer available
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)20
Max. working pressure (bar)6
Nozzle typeDuro mist nozzle 1.5 mm
Spray patternHollow cone nozzle (for smaller shrubs and plants)
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsPlastic / brass, brass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)270
Width (mm)375
Height (mm)610
Weight (kg)5.5
Device typeBackpack sprayer
Special function
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Duro mist nozzle 1.5 mm, G1/4" (Accessories)Duro mist nozzle 1.5 mm, G1/4" (Accessories)Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Trigger brass LB, G1/2", Viton, 10 bar Trigger brass LB, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Trigger brass LB, G1/2" Viton, 10 bar (Accessories)Trigger brass LB, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Duro mist nozzle 0.8 mm, G1/4" (Accessories)Duro mist nozzle 0.8 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle50°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.0 mm, G1/4" (Accessories)Duro mist nozzle 1.0 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle60°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.3 mm, G1/4" (Accessories)Duro mist nozzle 1.3 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle75°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.5 mm, G1/4" (Accessories)Duro mist nozzle 1.5 mm, G1/4" (Accessories)Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.65 mm, G1/4" (Accessories)Duro mist nozzle 1.65 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle90°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.3 mm, G1/4“ brass nickelAdjustable nozzle 1.3 mm, G1/4“ brass nickelTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8001 VS, Viton (orange) (Accessories)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 80015 VS, Viton (green)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8002 VS, Viton (yellow)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8003 VS, Viton (blue)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Pressure control valve PR 3 E1, G1/2" (14 - 44 psi) (Accessories)Pressure control valve PR 3 E1, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Fanjet nozzle G1/4"i, XR 8004 VS, Viton (red)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Pressure control valve PR 3 E1, G1/2" (14 - 44 psi) Pressure control valve PR 3 E1, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Fanjet nozzle G1/4"i, XR 8005 VS, Viton (brown)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8006 VS, Viton (grey)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8008 VS, Viton (white)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.7 mm, G1/4"Adjustable nozzle 1.7 mm, G1/4Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.3 mm G1/4” (Accessories)Adjustable nozzle 1.3 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiTo the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range7.3 – 87 psiFlow rate gal/minpsiTo the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 102 psiFlow rate gal/minpsiTo the nozzle
AccessoriesSpare partsVideo / LeafletInstructionsReviews
DownloadsProduct BreakdownAccessories and spare parts page 30Accessories and spare parts page 31
Videos

No videos available.

DownloadsLeaflet
SaleFunctional description
HandlingFirst assemblyFillingEmptyFitting on the carrying belts
Maintenance & careEmpty and clean equipmentClean nozzle and trigger valveSupply and lubricateDismantling knapsack sprayerChange carrying beltMounting knapsack sprayer
ModificationsChange carrying beltsChange pump
ManualsOperating Manual
