Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

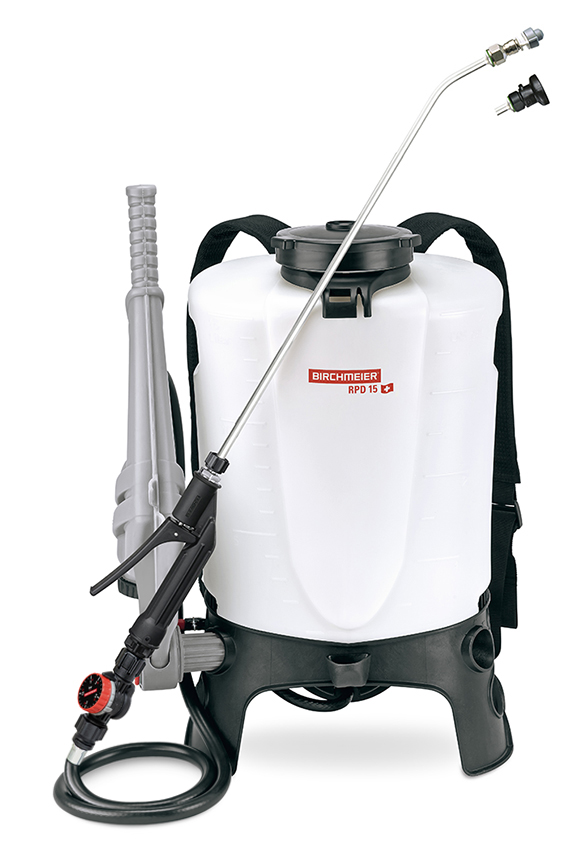

RPD 15 PB2 (screwable)
with PR 3

Article number: 11969501 / EAN: 7611034010199
RPD 15 PB2

Backpack sprayer, equipped with the special nozzle NF 125 and fanjet nozzle TPU 8002 PP for disinfection and cleaning.

Real work comfort

  • Adjustable pressure control valve PR 3 P1 (1-3 bar)
  • Re-defined ergonomics
  • Pump can be folded up
  • Hose outlet in working direction
  • Click belt system
  • Recessed grips
  • Can be used left or right



All in the lever

  • Non-drip piston pump
  • Integrated air chamber
  • Hose outlet
  • Holder for spray lance



Proven Birchmeier technology

  • Externally mounted pump
  • Large filling opening with strainer
  • Tank outlet via suction system
  • Top quality mountings
  • Special nozzle NF 125
  • Fanjet nozzle TPU 8002 PP
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with diluted acids, weak alkalis, hypochlochrites.For use with mineral oil based and vegetable solvents and oils.
ApplicationDisinfection
Form of application
Filling capacity (Volume, l)15
Max. working pressure (bar)5
Nozzle typeFanjet nozzle TPU 8002 PP
Special nozzle NF 125, G1/4"i
Spray patternFanjet nozzleFull cone nozzle (especially for fine misting)
Nozzles materialPlastic
Material Device/containerPlastic
Material FittingsPlastic, stainless steel
Fitting connectorsscrew fitting
Stress classHeavy duty
Length (mm)220
Width (mm)400
Height (mm)610
Weight (kg)3.5
Device typeBackpack sprayer
Special functionGaskets VitonSuitable for disinfection
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Fanjet nozzle G1/4"i, TPU 8002 PP Viton (grey)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Special nozzle NF 125, G1/4"iSpecial nozzle NF 125, G1/4Technical parametersSpray patternFine hollow cone nozzle (especially suitable for the disinfection)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Spray tube 1 m straight, stainless steel, G1/4”e-G1/4”e (Accessories)Spray tube 1 m straight, stainless steel, G1/4”e-G1/4”e (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Pressure control valve PR 3, G1/2" (14 - 44 psi) (Accessories)Pressure control valve PR 3, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Pressure control valve PR 3 P1, G1/2" (14 - 44 psi) Pressure control valve PR 3 P1, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
AccessoriesSpare partsVideo / LeafletInstructionsReviews
DownloadsAccessories and spare parts
Videos
DownloadsDisinfect with BirchmeierDisinfection compatibility listThe correct colour for your application
HandlingAssembly instructions pump leverFirst assemblyDisassembly the pump lever for repairChanging the pump lever sideAssembling the pump lever
ManualsRPD 15 PB2RPD 15 ATS
Safety regulationsSafety regulations
