Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

Rondo-Matic 5

Article number: 11622101 / EAN: 7611034121260
Rondo-Matic 5

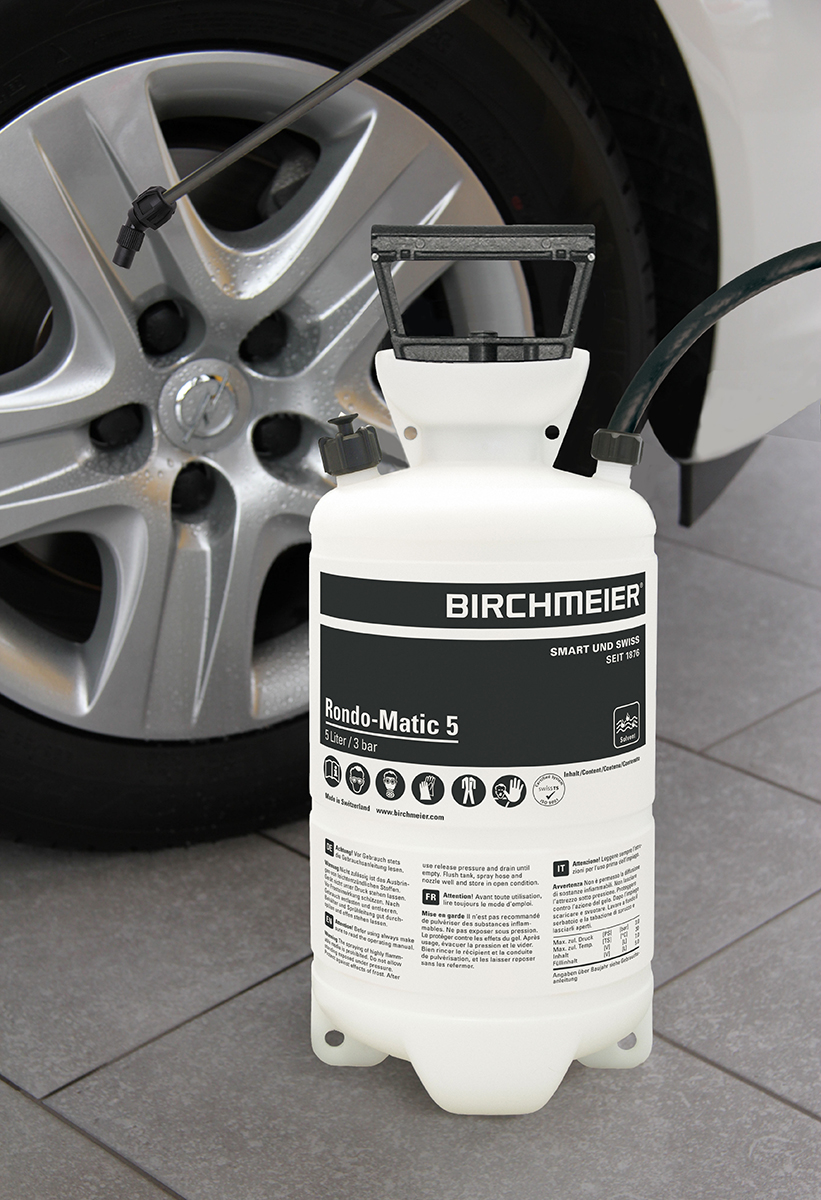

  • 5-liter Sprühgerät Rondo-Matic von Birchmeier zur Felgenreinigung

Compact compression sprayer

  • Impact resistant polyethylene tank with 5 litres filling volume, transparent with litre and US gal. scale
  • Ergonomic and powerful pump with stainless steel pump rod and sleeve guidance
  • 3 bar operating pressure and 2 litres pressure space
  • Safety valve
  • Gaskets Viton
  • 40 cm spray lance with angled adjustable nozzle made of polypropylene
  • 1.2 m pressure hose
  • Large filling opening with integrated funnel
  • Rapid response trigger
  • Comfortable carrying belt
  • Handle with integrated lance holder



Read more

Technical data
Chemical resistanceNot suitable for acid-based herbicides (for example acetic acid), peroxides, acids, alkalines and solvents.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.For use with mineral oil based and vegetable solvents and oils.
ApplicationAntirust
Impregnation
Formwork release oil / Release agents
Disinfection
Form of applicationLiquid
Filling capacity (Volume, l)5
Max. working pressure (bar)3
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialPlastic
Material Device/containerPlastic
Material FittingsPlastic
Fitting connectorscompression fitting
Stress classStandard duty
Length (mm)196
Width (mm)196
Height (mm)485
Weight (kg)2.3
Device typeCompression sprayer plastic
Special functionGaskets Viton
Nozzles data
Adjustable nozzle 1.3 mm, PP FPMAdjustable nozzle 1.3 mm, PP FPMTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Videos

No videos available.

DownloadsLeafletThe correct colour for your application
