Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

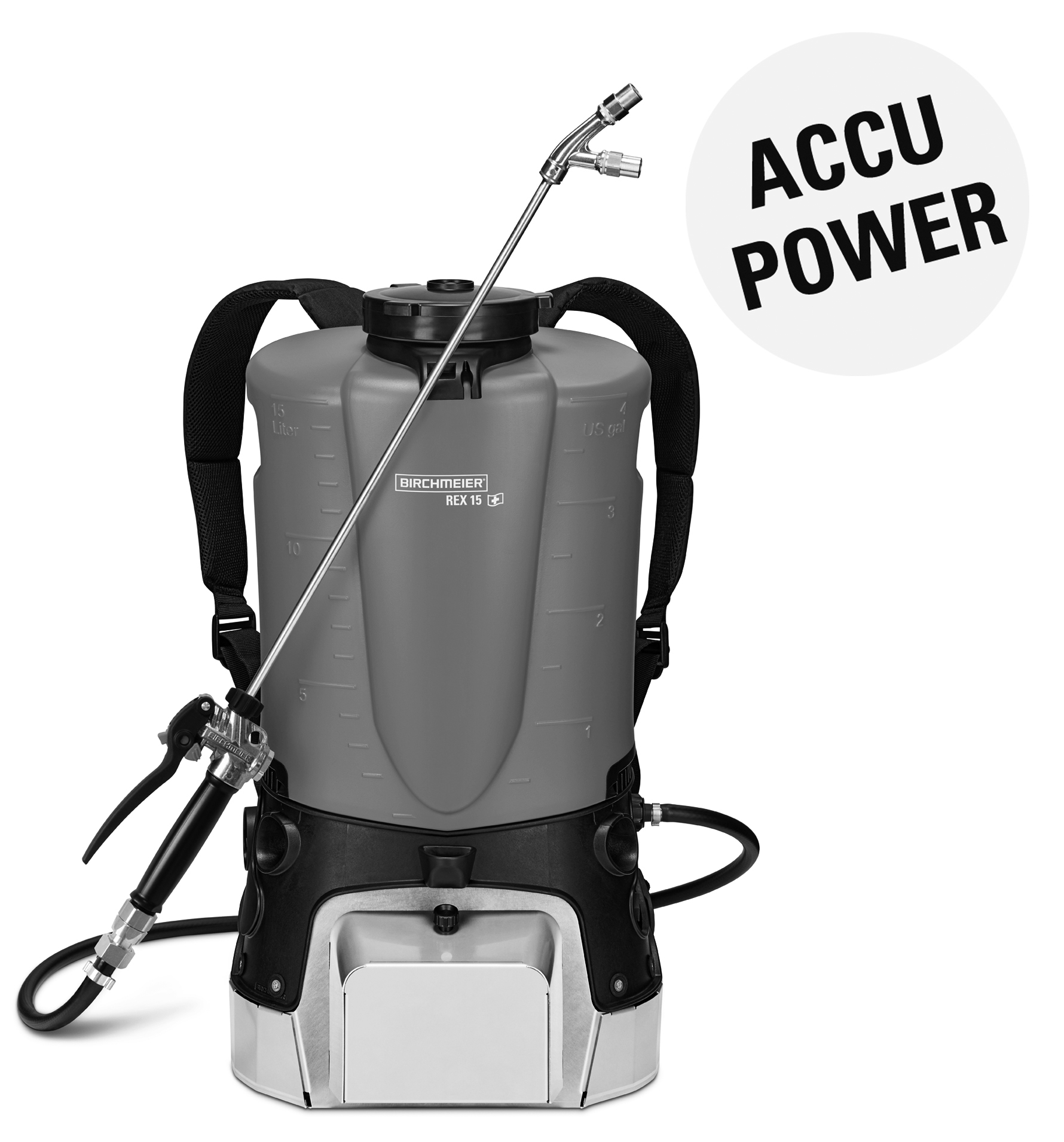

_REX 15 AZ1

Article number: 12026501 / EAN: 7611034210896

Replaced by REX 15 AC1 (12071801)

REX 15 AZ1
  • Akku-Rückensprühgerät REX 15 gewinnt Taspo Award
  • Akku-Rückensprühgerät REX 15 mit starkem Lithium-Ionen-Akku und stufenlosen Arbeitsdruck bis 10 bar
  • Akku-Rückensprühgerät REX 15 mit starkem Lithium-Ionen-Akku und stufenlosen Arbeitsdruck bis 10 bar
  • Akku-Rückensprühgerät REX 15 mit starkem Lithium-Ionen-Akku und stufenlosen Arbeitsdruck bis 10 bar
  • Akku-Rückensprühgerät REX 15 mit starkem Lithium-Ionen-Akku und stufenlosen Arbeitsdruck bis 10 bar

The zero emission, powerful and quit REX 15 - replaces all other small-engine-powered sprayers

Real work comfort

  • Zero emission, quiet and environmentally friendly
  • Operating pressure can be continuously adjusted
  • Flow rate of up to 5.5 l / min
  • Constant and very fine spray pattern
  • 2 high performance Duro-mist nozzles
  • Optimum comfort to wear due to ergonomic design
  • Easy access to the suction filter
  • No petrol storage neccessary anymore
  • Stainless steel hand-cart (available as accessory)



Elektronic regulation

  • Intelligent pressure regulation
  • Operating pressure adjustable (1 to 10 bar)
  • Energy efficient
  • Protective setup for pump and rechargeable battery



Powerful battery

  • Li-Ion with 220 Wh battery capacity;t
  • More than 2 hours spraying time at 10 bar
  • 360 litres can be sprayed at 10 bar
  • Spraying time up to 21 hours
  • Charging time less 2.5 h



Various applications

  • Greenhouses
  • Indoor plantages
  • Communal amenities
  • Urban area
  • Cementeries
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)15
Max. working pressure (bar)10
Nozzle typeDuro mist nozzle 1.3 mm
Spray patternHollow cone nozzle (for smaller shrubs and plants)
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsBrass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)275
Width (mm)340
Height (mm)625
Weight (kg)10
Device typeBattery sprayer
Special functionBattery unit 25 VElectronic pressure regulation
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Duro mist nozzle 1.3 mm, G1/4" (Accessories)Duro mist nozzle 1.3 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Anti-drift fanjet nozzle G1/4"i, AIXR 110015 VP (green) (Accessories)Anti-drift fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 145 psiSpray angle110°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Anti-drift fanjet nozzle G1/4"i, AIXR 11002 VP (yellow) (Accessories) Anti-drift fanjet nozzle G1/4Technical parametersSpray patternPressure range15 – 145 psiSpray angle110°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Anti-drift fanjet nozzle G1/4"i, AIXR 11004 VP (red) (Accessories)Anti-drift fanjet nozzle G1/4Technical parametersSpray patternPressure range15 – 145 psiSpray angle110°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.5 mm, G1/4"Duro mist nozzle 1.5 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 102 psiFlow rate gal/minpsiTo the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range7.3 – 87 psiFlow rate gal/minpsiTo the nozzle
