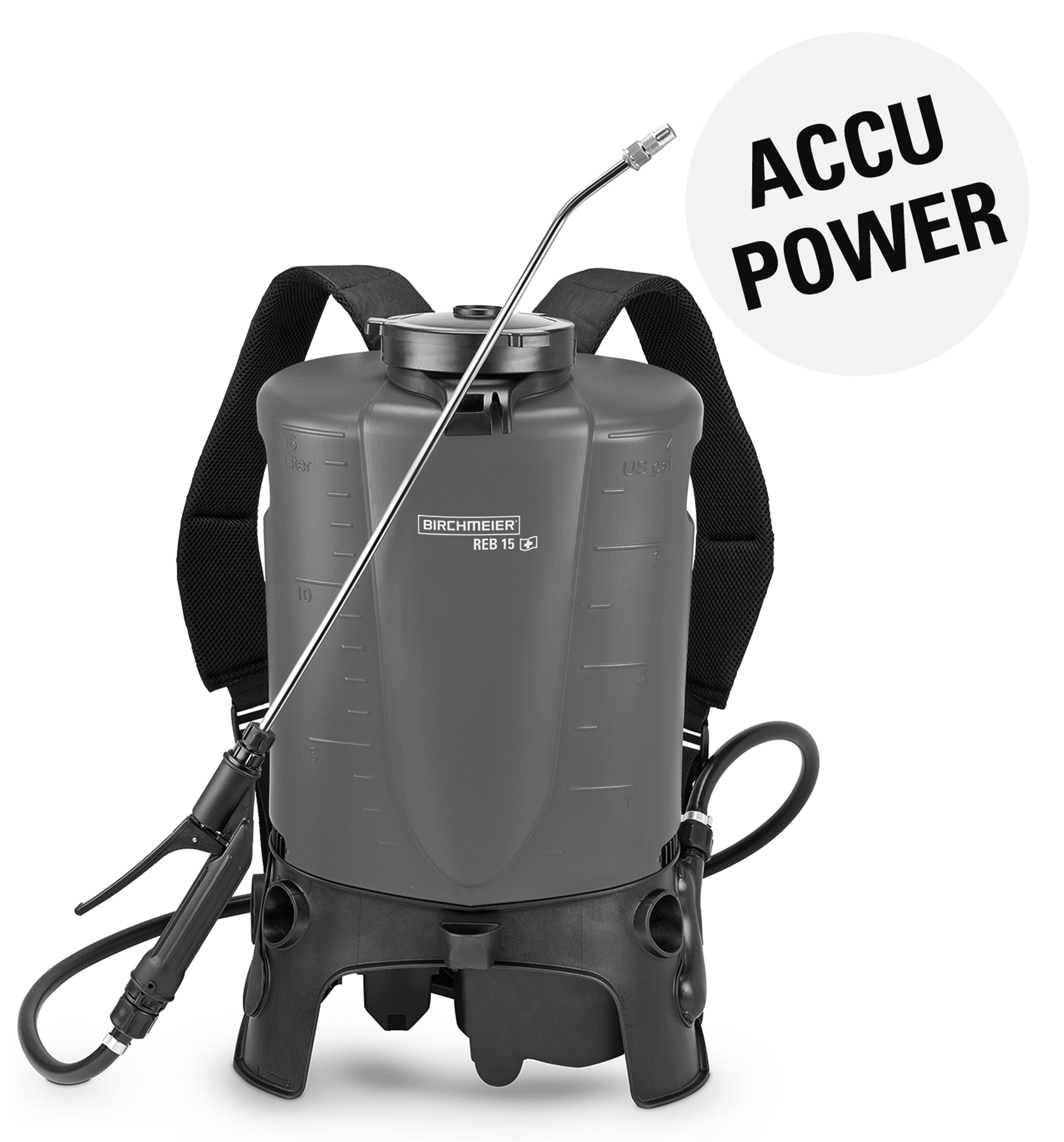

_REB 15 AZ2

Article number: 11957001 / EAN: 7611034210452

Replaced by REB 15 AC1 (12070801)

Akku-Rückensprühgerät REB 15 AZ2
  • Akku-Rückensprühgerät REB 15 gewinnt Taspo Award
  • Akku-Rückensprühgerät REB 15 von Birchmeier zum Besprühen von Gemüsepflanzen im Gartenbau, Gewächshaus
  • Akku-Rückensprühgerät REB 15 von Birchmeier zum Besprühen von Topfpflanzen, Jungpflanzen im Gartenbau, Gewächshaus
  • Akku-Rückensprühgerät REB 15 von Birchmeier zum Bekämpfen des Buchsbaumzünslers, Galabau

By professionals for demanding users. The new battery backpack sprayer.

Real working comfort

  • Consistent spray pattern
  • Drop size adjustable
  • Re-defined ergonomics
  • Hose outlet in working direction
  • Click belt system
  • Recessed grips
  • Li-Ion battery



Electronically controlled

  • Continuous variable operating pressure
  • Pressure range: 1.0 – 4.5 bar
  • Protective setup for pump and battery
  • 5½ h at 1.5 bar (~110 l)
  • 2 h at 4.5 bar (~80 l)



Proven Birchmeier technology

  • Robust pump
  • Tank outlet via suction system
  • New designed click belt system
  • Brass nozzle adjustable
  • Top quality mountings
  • Large filling opening with strainer
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Biological agents
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)15
Max. working pressure (bar)4
Nozzle typeAdjustable nozzle 1.7 mm
Spray patternAdjustable nozzle
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsPlastic, brass
Fitting connectorsscrew fitting
Stress classHeavy duty
Length (mm)220
Width (mm)400
Height (mm)610
Weight (kg)4.1
Device typeBattery sprayer
Special functionBattery unit 14 VElectronic pressure regulation
Nozzles data
Adjustable nozzle 1.7 mm G1/4” (Accessories)Adjustable nozzle 1.7 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Herbicide Floodjet nozzle 1.6 mm, blue  (Accessories)Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiTo the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range7.3 – 87 psiFlow rate gal/minpsiTo the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 102 psiFlow rate gal/minpsiTo the nozzle
Videos

No videos available.

DownloadsLeaflet«Accu-Power» sprayers
Safety regulationsSafety regulations
