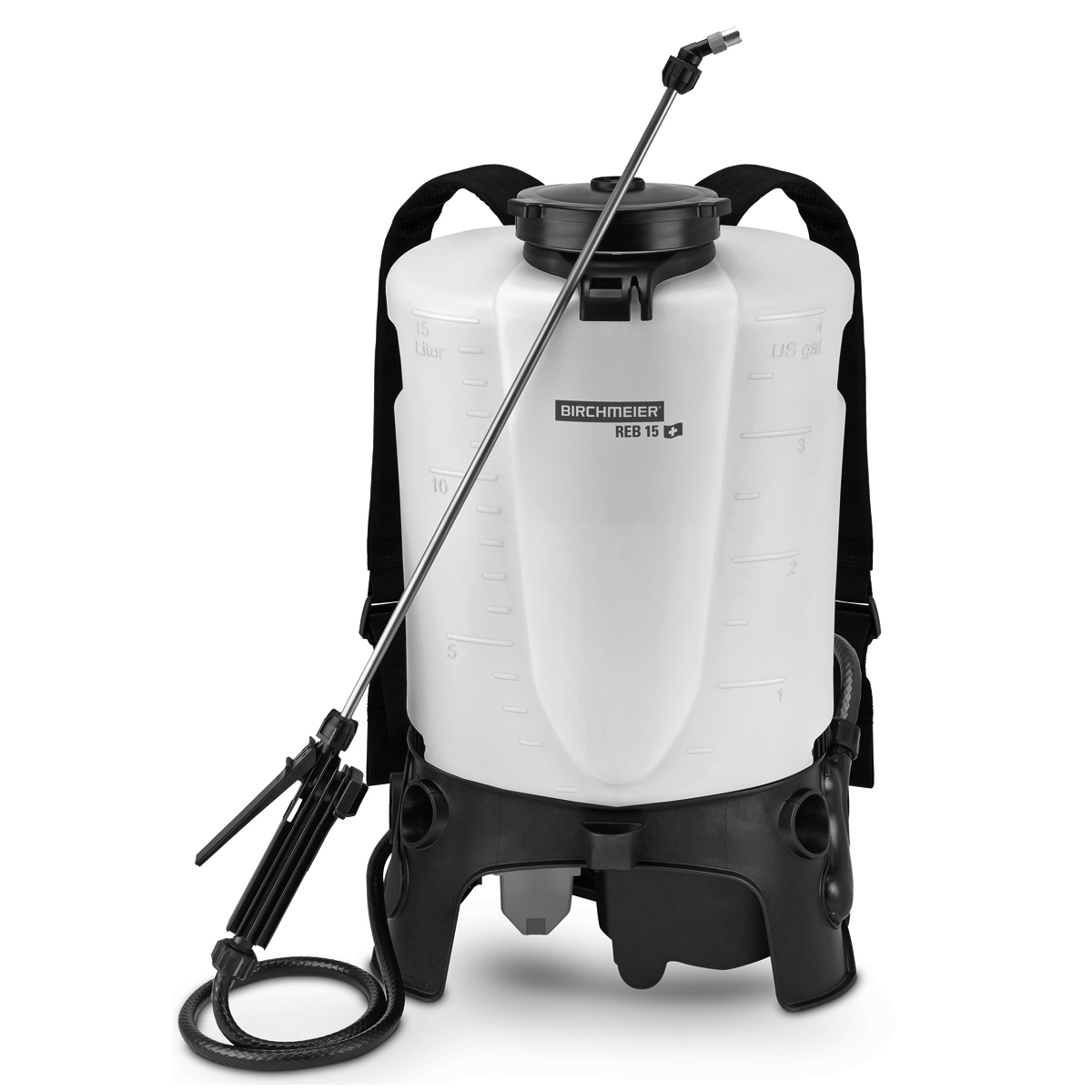

_REB 15 AZ1

Article number: 11956501 / EAN: 7611034210438

Replaced by REA 15 AC1 (12070701)

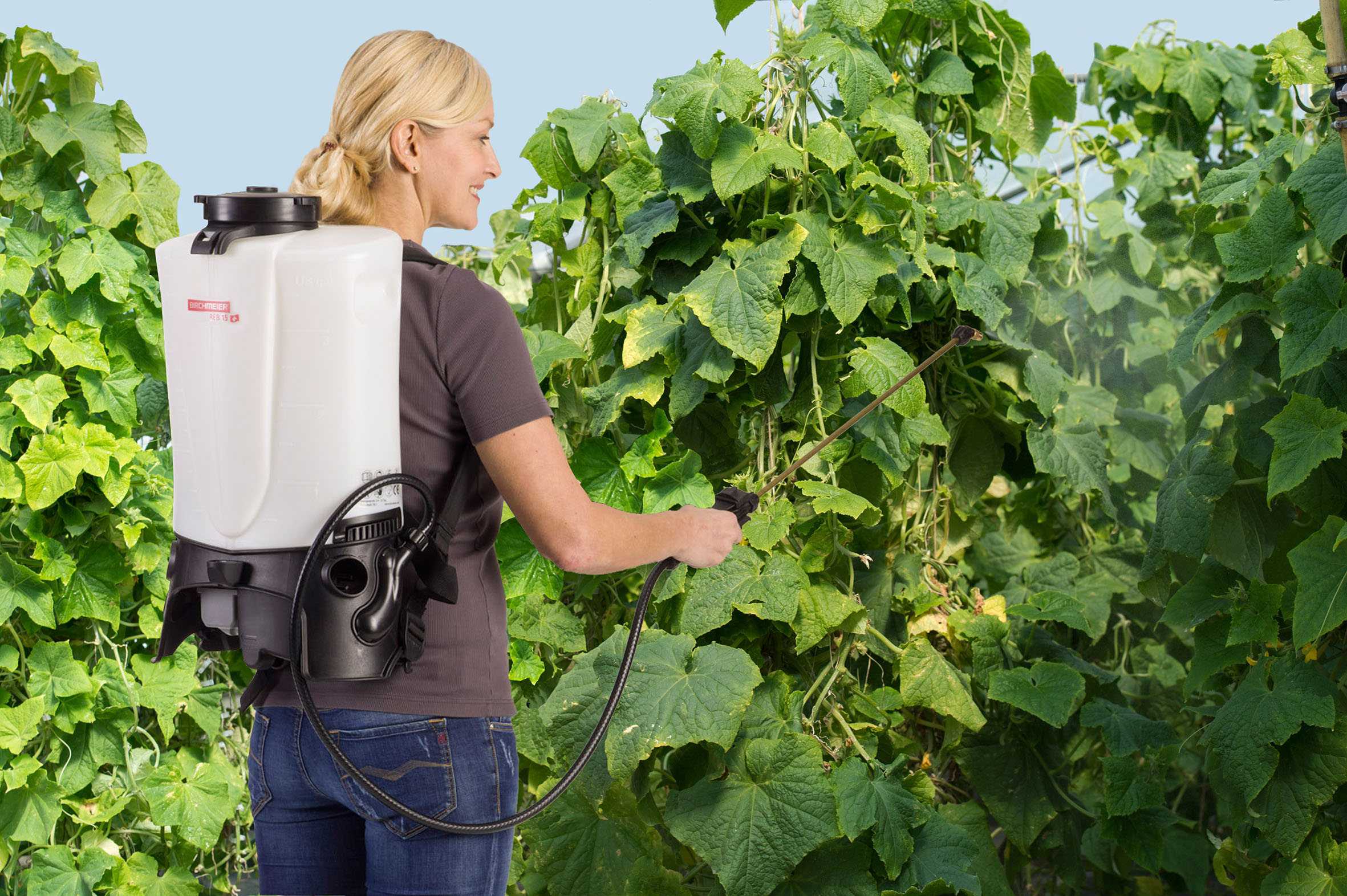

Akku-Rückensprühgerät REB 15 AZ1 von Birchmeier
  • Akku-Rückensprühgerät REB 15 von Birchmeier, Gartenbau, Galabau

By professionals for demanding users. The new battery backpack sprayer.

Real working comfort

  • Consistent spray pattern
  • Drop size adjustable
  • Re-defined ergonomics
  • Hose outlet in working direction
  • Click belt system
  • Recessed grips
  • Li-Ion battery



Electronically controlled

  • Continuous variable operating pressure
  • Pressure range: 1.0 – 4.5 bar
  • Protective setup for pump and battery
  • 5½ h at 1.5 bar (~120 l)
  • 1¾ h at 4.5 bar (~80 l)



Proven Birchmeier technology

  • Robust pump
  • Tank outlet via suction system
  • New designed click belt system
  • Plastic/brass nozzle adjustable
  • Simple plug-in system (compression fitting)
  • Large filling opening with strainer
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)15
Max. working pressure (bar)4
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialPlastic, brass
Material Device/containerPlastic
Material FittingsPlastic, brass
Fitting connectorscompression fitting
Stress classStandard duty
Length (mm)220
Width (mm)400
Height (mm)610
Weight (kg)4.1
Device typeBattery sprayer
Special functionBattery unit 14 VElectronic pressure regulation
Nozzles data
Adjustable nozzle 1.7 mm, PP Ms NBRAdjustable nozzle 1.7 mm, PP Ms NBRTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
