_Profi Star 3

Article number: 11831001 / EAN: 7611034011196

Replaced by Profi Star 3, with PR 3 (12118401)

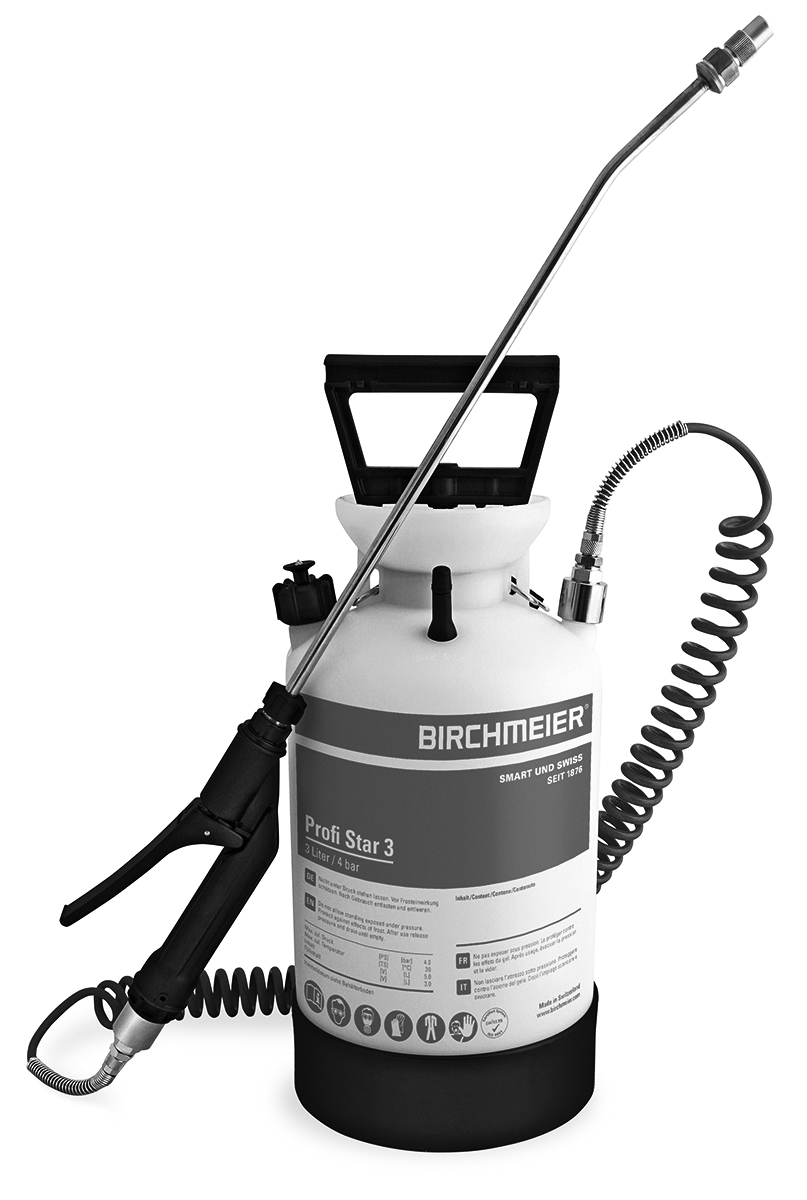

Profi Star 3

Flexible allrounder for professional pest control applications

  • Plastic pressure tank with additional plastic tank base
  • Filling volume of 3 litres (tank volume 5.5 litres)
  • Chemical resistant FPM (Viton) gaskets
  • 4 bar operating pressure
  • Large filling opening with integrated filling funnel
  • Spiral hose or a flexible handling
  • Adjustable brass nozzle
  • Safety and relief valve
  • Compressed air valve for pressurisation
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.For use with mineral oil based and vegetable solvents and oils.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)3
Max. working pressure (bar)4
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsPlastic, brass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)182
Width (mm)182
Height (mm)430
Device typeCompression sprayer plastic
Special functionGaskets Viton
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Adjustable nozzle 1.3 mm G1/4” (Accessories)Adjustable nozzle 1.3 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.65 mm, G1/4" (Accessories)Duro mist nozzle 1.65 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle90°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiTo the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range7.3 – 87 psiFlow rate gal/minpsiTo the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 102 psiFlow rate gal/minpsiTo the nozzle
