Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

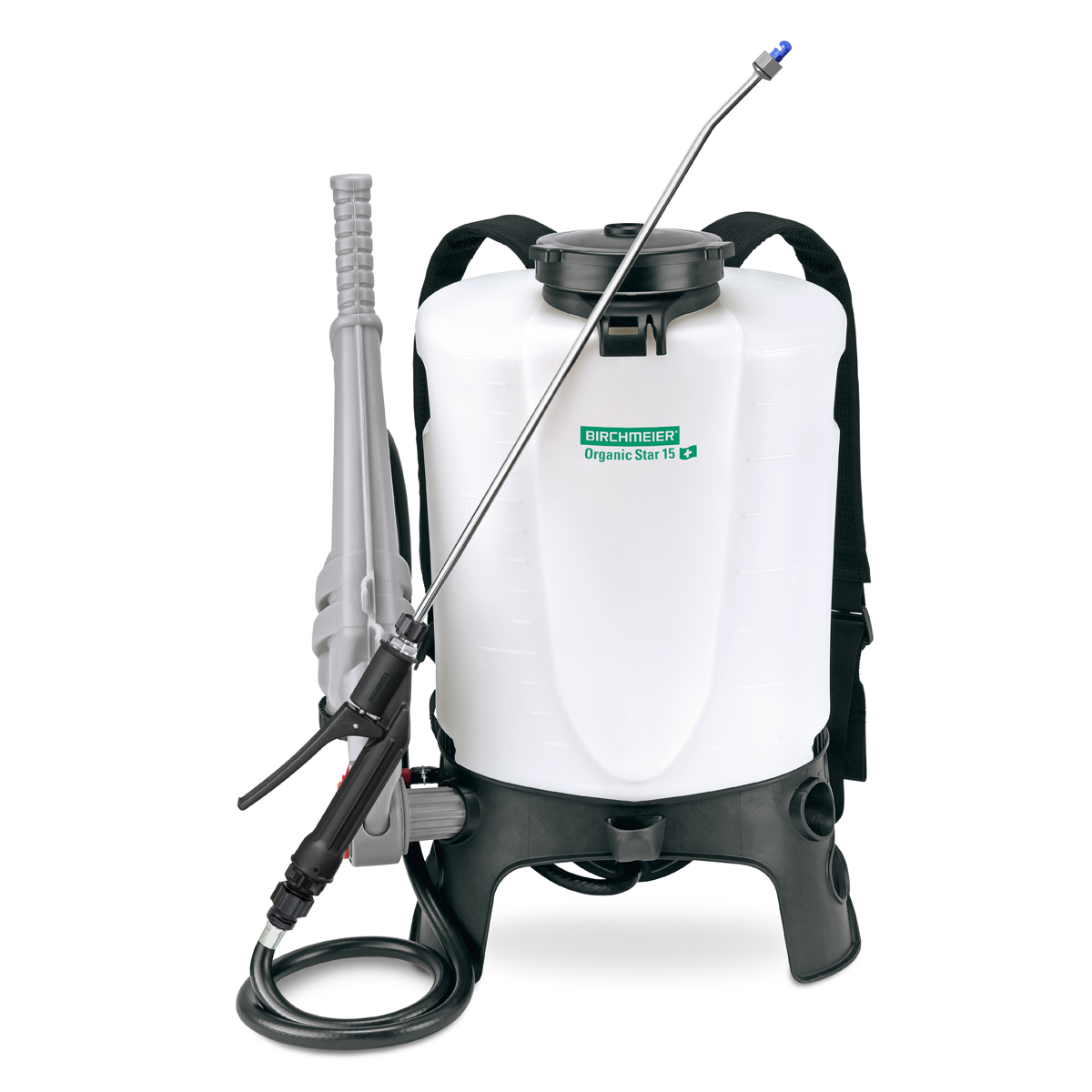

Organic Star 15

Article number: 11998001 / EAN: 7611034010236
Rückensprühgerät Organic Star 15 von Birchmeier, speziell Essigsäure beständig

Specially for activ agents of natural origin (glyphosat free)

Real work comfort

  • Re-defined ergonomics
  • Pump can be folded up
  • Hose outlet in working direction
  • Click belt system
  • Recessed grips
  • Can be used left or right



All in the lever

  • Non-drip piston pump
  • Integrated air chamber
  • Hose outlet
  • Holder for spray lance



Proven Birchmeier technology

  • Externally mounted pump
  • Tank outlet via suction system
  • New designed click belt system
  • Herbicide Floodjet nozzle
  • Top quality mountings
  • Large filling opening with strainer
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Acetic acid
Biological agents
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)15
Max. working pressure (bar)5
Nozzle typeHerbicide Floodjet nozzle 1.6 mm
Spray patternFanjet nozzle
Nozzles materialPlastic, stainless steel
Material Device/containerPlastic
Material FittingsPlastic, stainless steel
Fitting connectorsscrew fitting
Stress classHeavy duty
Length (mm)220
Width (mm)400
Height (mm)610
Weight (kg)3.7
Device typeCompression sprayer plastic
Special function
Nozzles data
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 102 psiFlow rate gal/minpsiTo the nozzle
Instructions for useOrganic Star 15RPD 15 ATS
Safety regulationsSafety regulations
