Indu-Matic 100 M

Article number: 11664802 / EAN: 7611034122304

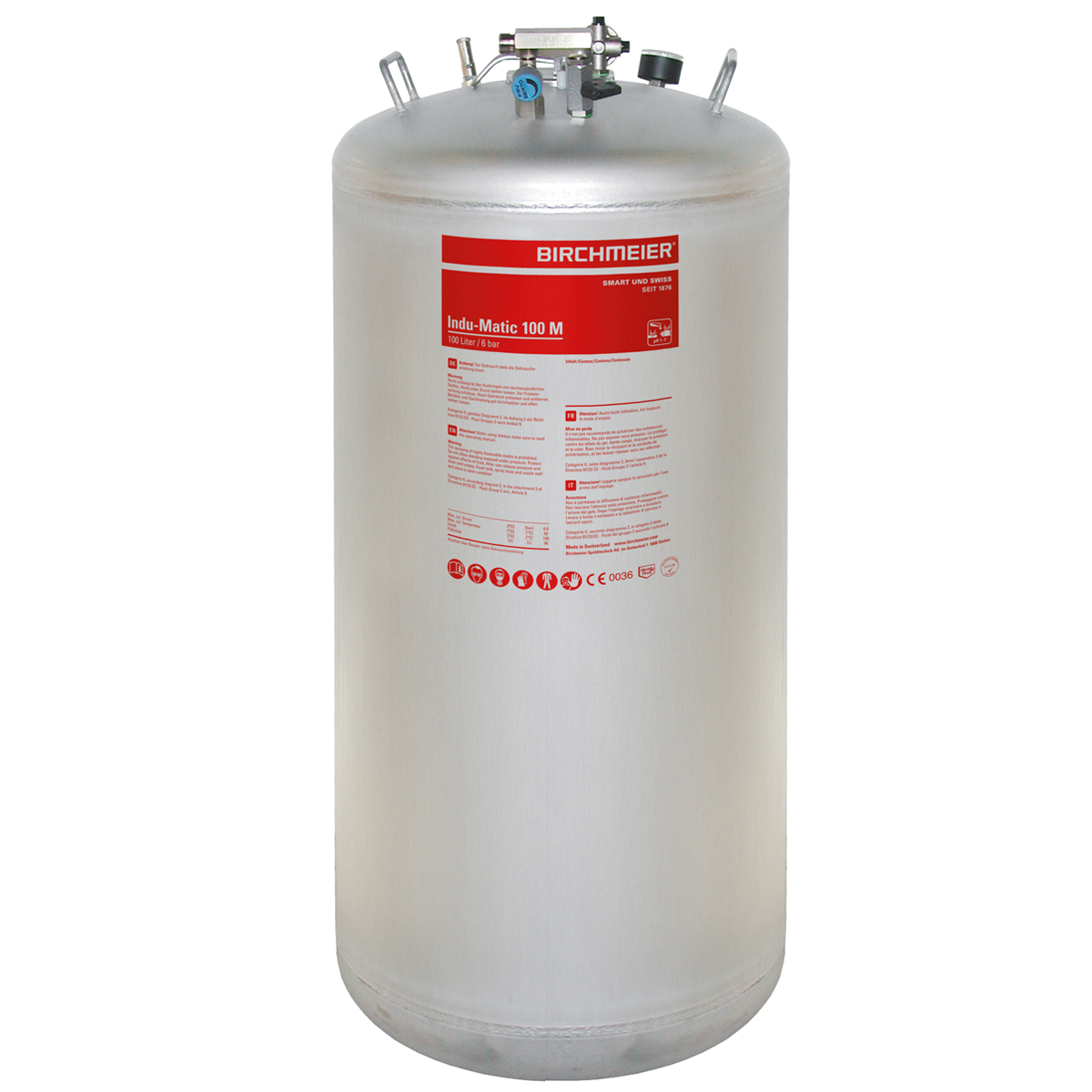

Indu-Matic 100 M

Mobile foam cleaner made of stainless steel

  • Tank made of stainless steel, volume 95 litres
  • Large filling opening with snap closing
  • Robust mixing unit to adjust the foam quality (from wet to dry)
  • Compressed air valve connection with quick coupling
  • Robust trigger valve assembly made of polypropylene and stainless steel with integrated fine filter
  • Handy, stainless steel lance 45 cm
  • Hoses 4, 6 and 8 m for large deployable radius
  • Changeable from foaming to spraying
  • Chemical resistant Viton gaskets
  • Safety valve – useful for quick deaeration
  • Pressure gauge
  • CE conform
Read more

Technical data
Chemical resistanceNot suitable for acid-based herbicides (for example acetic acid), peroxides, acids, alkalines and solvents.For use with diluted acids, weak alkalis, hypochlochrites.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationWater
Acids
Disinfection
Form of applicationFoam
Filling capacity (Volume, l)100
Max. working pressure (bar)6
Nozzle typeFanjet nozzle TP 6540-SS
Spray patternFanjet nozzle
Nozzles materialStainless steel
Material Device/containerStainless steel
Material FittingsPlastic, stainless steel
Fitting connectorsscrew fitting
Stress classVery heavy duty
Device typeCompression foamer stainless steel
Special functionGaskets Viton
Nozzles data
Fanjet nozzle TP 6540-SSFanjet nozzle TP 6540-SSTechnical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range0 – 0 psiFlow rate gal/minpsiTo the nozzle
Fanjet nozzle G1/4"i, XR 8002 VS, Viton (yellow)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
