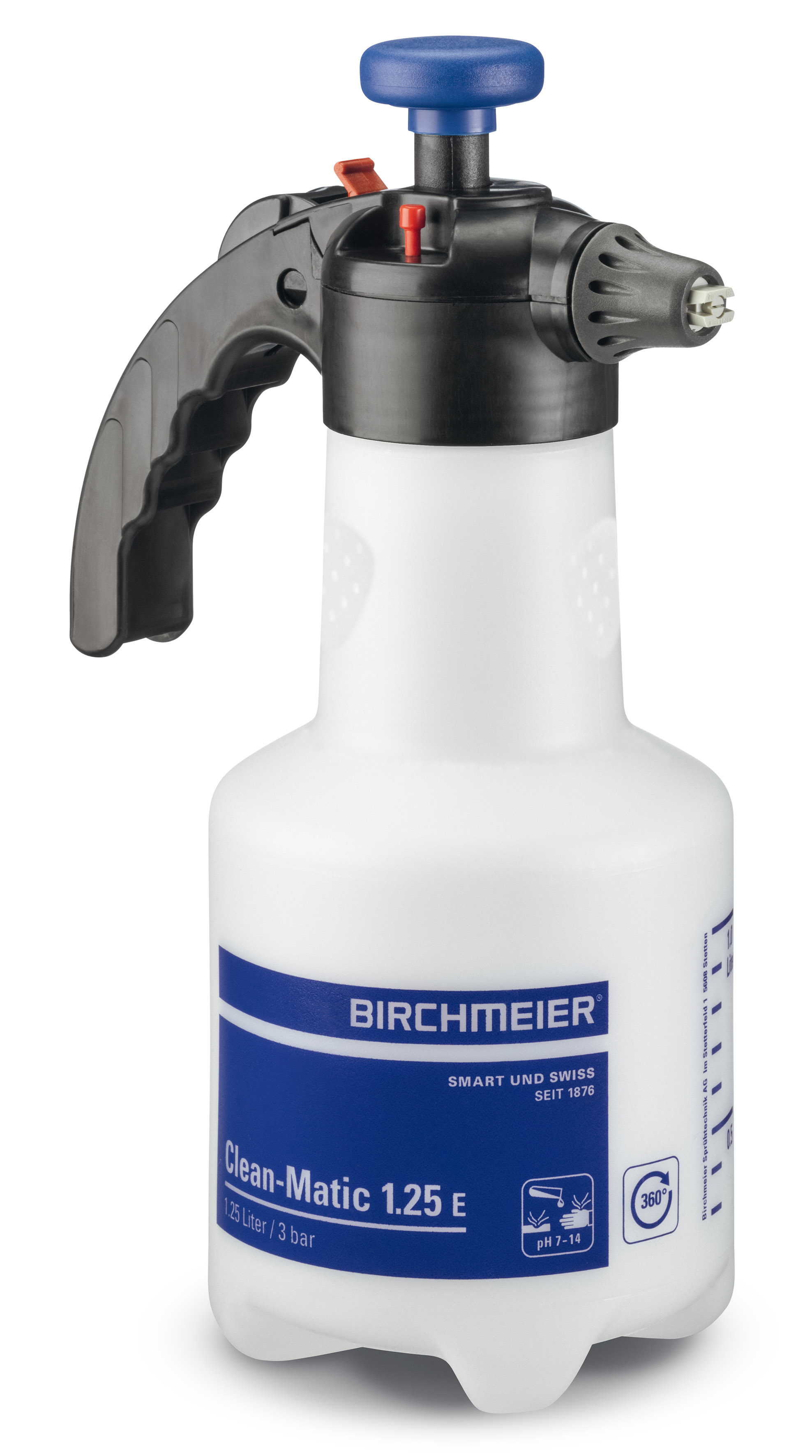

Clean-Matic 1.25 E / 360° with Fanjet nozzle

Article number: 11975401 / EAN: 7611034130972
Clean-Matic 1.25 E / 360° with Fanjet nozzle

New swing with 360° function. High quality hand compression sprayer for spraying in professional cleaning and disinfection.

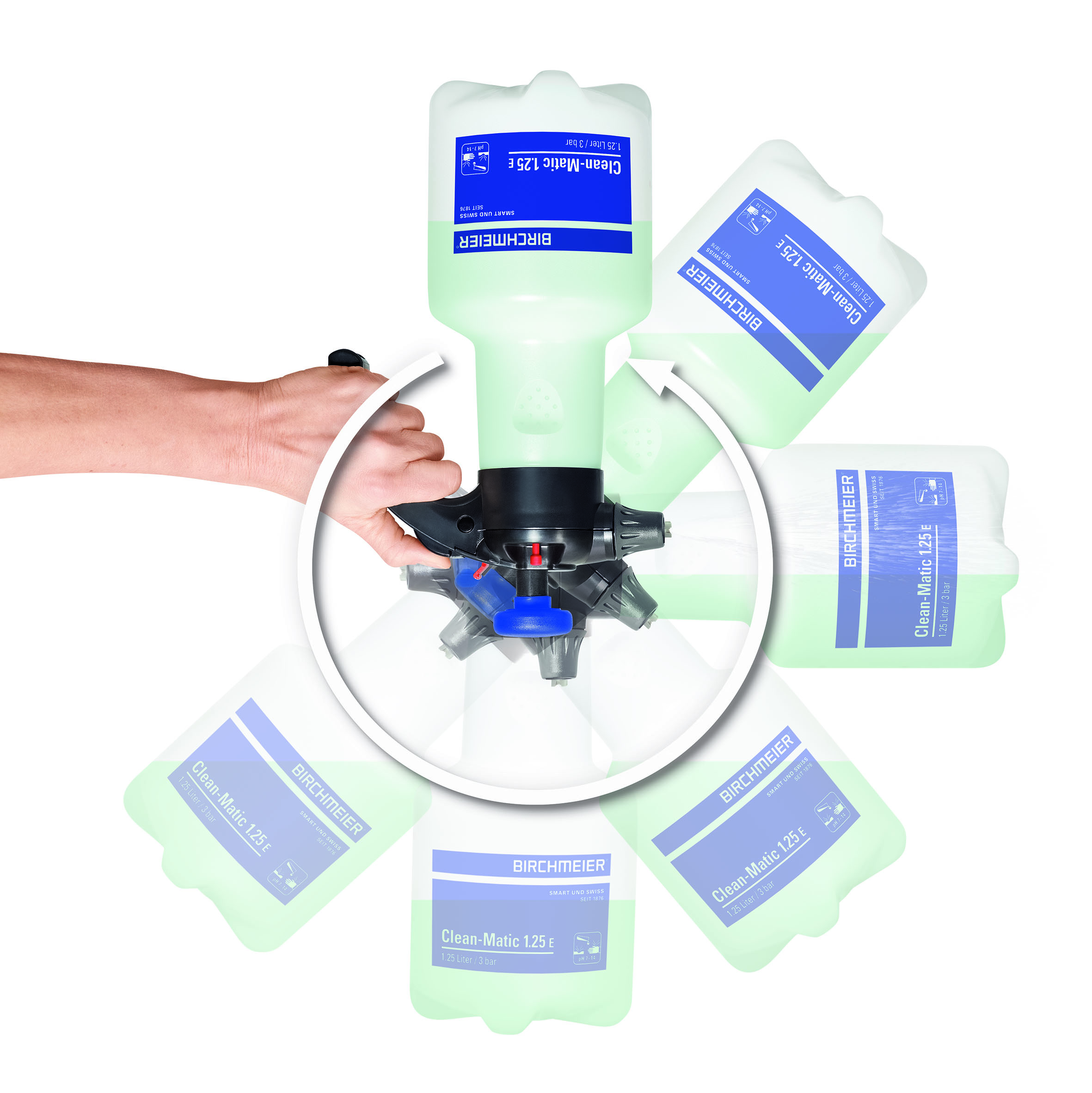

  • Spraying in any position (360°)
  • Impact resistant polyethylene tank with 1.25 l filling capacity, transparent
  • Recessed grips
  • Special resistant gaskets against alkaline products
  • Safety valve and lockable push-button
  • Ergonomic and efficient hand pump up to 3 bar operating pressure
  • Large filling opening
  • Fanjet nozzle made of plastic
Read more

Compare Add to wish list
Technical data
Chemical resistanceNot suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.For use with diluted alkalines and specific acids (for example acetic acid).Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.Suitable for disinfection
ApplicationWater
Alkalis
Disinfection
Form of applicationLiquid
Filling capacity (Volume, l)1.25
Max. working pressure (bar)3
Nozzle typeFanjet nozzle TPU 8002 PP
Spray patternFanjet nozzle
Nozzles materialPlastic
Material Device/containerPlastic
Material FittingsPlastic
Fitting connectors
Stress classVery heavy duty
Length (mm)125
Width (mm)215
Height (mm)305
Weight (kg)0.43
Device typeHand sprayer
Special functionSpray function 360° (spraying in any position)Gaskets EPDMSuitable for disinfection
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Fanjet nozzle compl. TPU 8002 PP, EPDMFanjet nozzle compl. TPU 8002 PP, EPDMTechnical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Element for fanjet nozzle XR 8002 VS yellow (Accessories)Element for fanjet nozzle XR 8002 VS yellow (Accessories)Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Foam nozzle G3/8" (Accessories)Foam nozzle G3/8Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Adjustable nozzle compl. brass nickel (Accessories)Adjustable nozzle compl. brass nickel (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range0 – 0 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
