Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

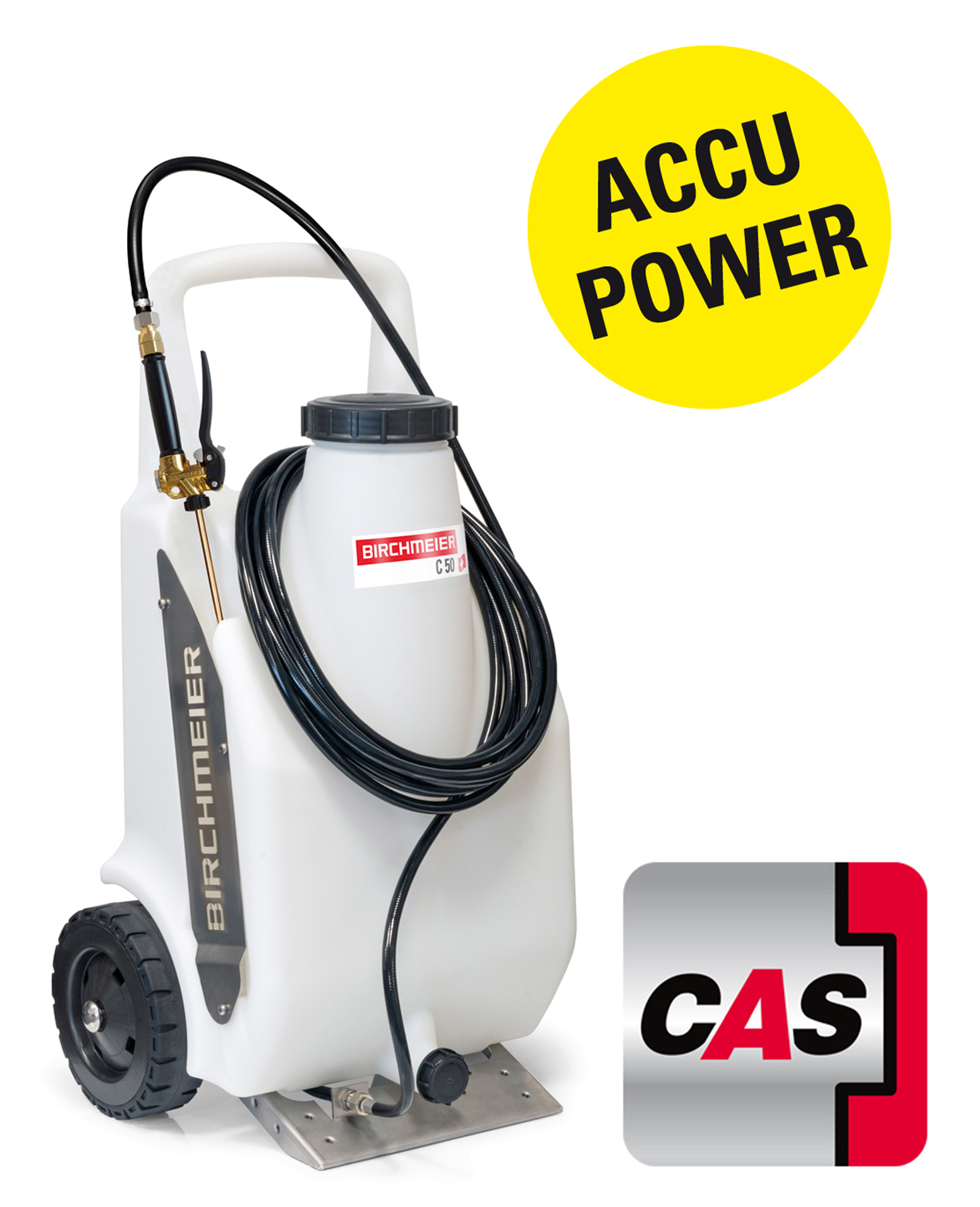

C 50 AC3 Two-wheel battery watering trolley

Article number: 12172901 / EAN: 7611034054483
C 50 AC3 Two-wheel battery watering trolley

Two-wheel battery-operated watering trolley with CAS system. Electronic pressure control, powerful, quiet and environmentally friendly...

Performance characteristic

  • Fill capacity: 50 l
  • Pump performance: 1 - 6 bar
  • Shower performance: 0.5 - 2 bar
  • Spray performance: 3.86 - 5.45 l / min with watering head
  • Battery pack: 18 V CAS LiHD / 8.0 Ah
  • Battery pack charging time: < 160 min



Real work comfort

  • Trigger brass
  • Spray tube 60 cm, brass with swivel holder and watering head
  • Robuste wheels
  • 10 m hose, large appllication
  • Holder for storring spray lance and accessories
  • Scope of delivery includes 8 Ah CAS LiHD battery pack and ASC 55 quick charger
  • Zero emission, quiet and environmentally friendly



Electronic control

  • Pressure control
  • Constant spray characteristics
  • Operating pressure can be continuously adjusted from 1 to 6 bar
  • Depending on the pressure and the accessories used, the rechargeable battery lasts from to 22 hours
  • Energy efficient
  • Protective setup for pump and rechargeable battery



Unique Birchmeier features

  • Constant spray characteristics thanks to pressure control
  • Large filling opening with integral fine-mesh filter
  • High quality screwed mountings
  • Rugged, long-life pump
  • Separate drainage opening
  • Built-in mixing function
  • A wide range of accessories (10 m hose extension, foam nozzle etc.)
  • Can also be combined with spray blower AS 1200



CAS: One battery, many solutions

  • CAS* - Unlimited combinations
  • Cross-manufacturer compatibility for over 300 devices
  • Different battery packs obtainable (up to 10 Ah)
  • Charge level is displayed by LED lights

* CAS (Cordless Alliance System is a cross-manufacturer battery pack system of leading power tool brands)

 «Accu-Power» Line

www.cordless-alliance-system.com

Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationWater
Form of applicationLiquid
Filling capacity (Volume, l)50
Max. working pressure (bar)6
Nozzle typeWatering head
Spray patternWatering
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsBrass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)480
Width (mm)575
Height (mm)1000
Weight (kg)29.5
Device typeTwo-wheel battery sprayer
Special functionBattery unit 18 VElectronic pressure regulation
Nozzles data
Watering headWatering headTechnical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Videos

No videos available.

DownloadsLeaflet
Instructions for useInstructions for use
Safety regulationsSafety regulations
Battery packBattery pack
ChargerCharger
