Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

A 130 Wheelbarrow sprayer, with electric engine (EU)

Article number: 11868801 / EAN: 7611034210131
A 130 with electric engine

The high-performance wheelbarrow sprayer with a low-maintenance membrane pump and a high delivery rate of 25 l / min. The pressure can be set over 4 levels up to a maximum of 25 bar.

  • 130 l transparent plastic tank
  • Removable 4.5 litre fresh water tank with spout

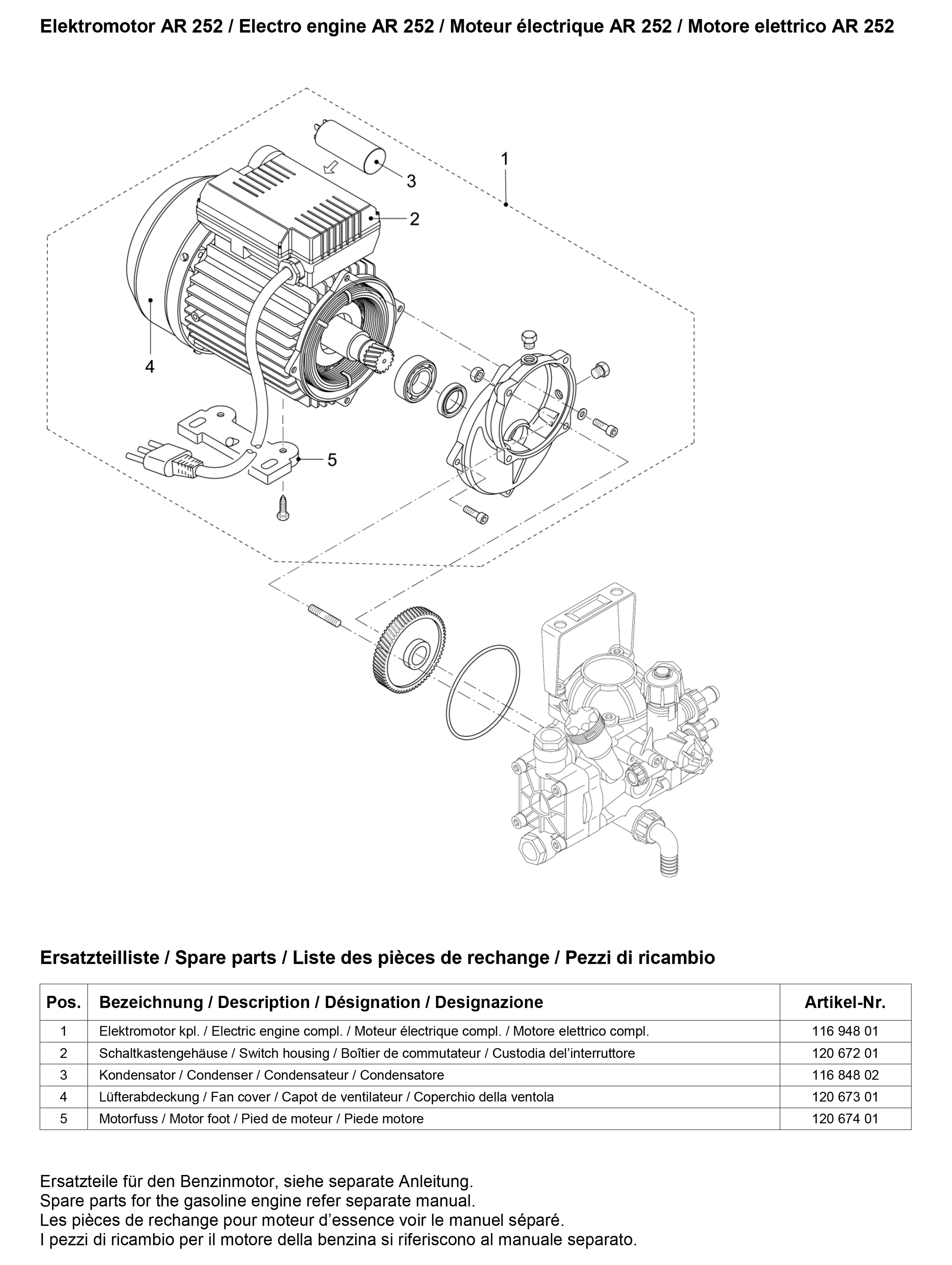

  • Electric engine (1.1 kW/1.5 PS) 230 V / 50 Hz
  • Electric cable L = 5 m
  • 4 selectable operating pressures (6/12/18/25 bar)
  • Weight: 58 kg
  • Optimal center of gravity due to the low situated tank
  • With hose winch and 50 m hose
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)130
Max. working pressure (bar)25
Nozzle type
Spray pattern
Nozzles material
Material Device/containerPlastic
Material Fittings
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)950
Width (mm)790
Height (mm)950
Weight (kg)55
Device typeMotorized sprayer
Special function
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Battery retrofit set for A 75 / A 130Battery retrofit set for A 75 / A 130Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Duro mist nozzle 1.5 mm, G1/4" (Accessories)Duro mist nozzle 1.5 mm, G1/4" (Accessories)Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Hose 40 bar, 10 m, G1/2“-G1/2“ (Accessories)Hose 40 bar, 10 m, G1/2“-G1/2“ (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Hose 40 bar, 20 m, G1/2“-G1/2“ (Accessories)Hose 40 bar, 20 m, G1/2“-G1/2“ (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Hose 40 bar, 30 m, G1/2“-G1/2“ (Accessories)Hose 40 bar, 30 m, G1/2“-G1/2“ (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Vario Gun (Accessories)Vario Gun (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range58 – 145 psiFlow rate gal/minpsiTo the nozzle
AccessoriesSpare partsVideo / LeafletInstructionsReviews
Videos

No videos available.

DownloadsLeaflet
ManualsOperating Manual
Safety regulationsSafety regulations
